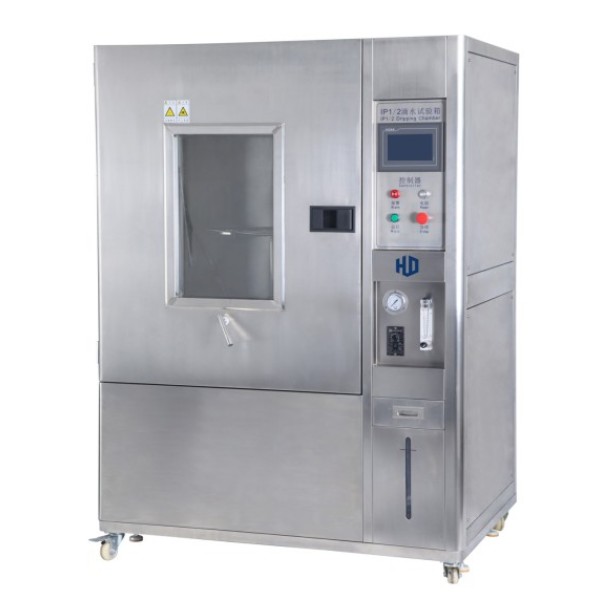

Environmental IPX12 Water Drip Test Chamber

Environmental IPX12 Water Drip Test Chamber

Environmental IPX12 Water Drip Test Chamber
CategoriesReliable Test Chamber
BrandHUD Tester
ModelHUD-E710-1
Internal dimension (W*D*H)1000*1000*1000mm
External dimension (W*D*H)1200*1400*2100mm
Chamber materialStainless steel #304, Waterproof Toughened glass o
Sample turntableDiameter 500mm
Turntable rotation speed1~10r/min, height can be adjusted
Water drop speed1 or 3mm/min, can be adjusted
FOB portshenzhen
Terms of PaymentL/C, D/A, D/P, T/T, Paypal
Download DOC
Update Time2021-09-22
Detail Information
Application

HUD-E710-1 is suitable for testing the performance test of products during storage, transportation and use in a rainy climate environment. It is mainly used to simulate electrical and electronic products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. Under rainy weather conditions, test the physical and other related properties of the product.

Operation

Place the sample in the test box as required, set the test time, the test time specified in the national standard is 10 minutes; Select the waterproof level, IPX1 or IPX2; Adjust the angle of the sample turntable, IPX1 is horizontal, and IPX2 is tilted 15 degrees; If power-on test is required, you need to set the power-on time and power-off time; after the test, determine whether the performance of the product can meet the requirements through verification, so that it can be used for product design, improvement, verification and factory inspection.

Paramater

Item

Specification

Internal dimension (W*D*H)

1000*1000*1000mm

External dimension (W*D*H)

1200*1400*2100mm

Chamber material

Stainless steel #304, Waterproof Toughened glass observation window

Sample turntable

Diameter 500mm

Turntable rotation speed

1~10r/min, height can be adjusted

Water drop speed

1 or 3mm/min, can be adjusted

Drip box size

800*800mm

Distance from drip box to specimen surface

200mm

Water drop hole diameter

0.4mm

Distance from water drop hole

20mm

Test duration

1~999h999min, adjustable

Turntable angle for IPX2

15° inclined on either side of the vertical in two mutually perpendicular planes

Safety protection device

Leakage, short circuit, motor over temperature…
