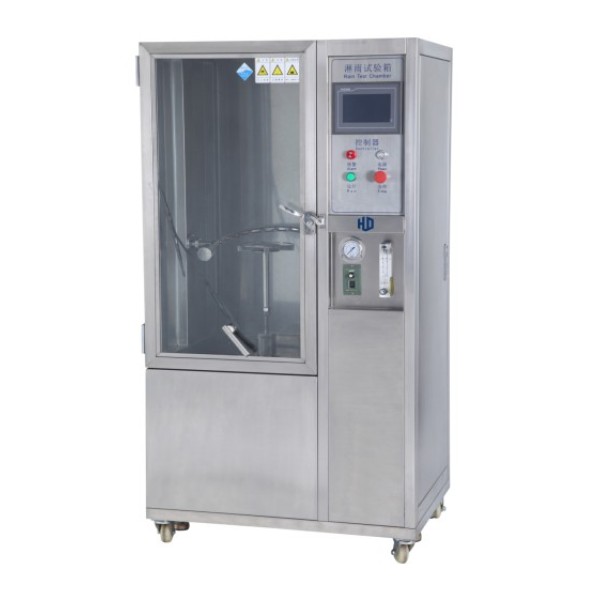

CE approved IPX3 IPX4 Programmable water spray test chamber rain spray test chamber

CE approved IPX3 IPX4 Programmable water spray test chamber rain spray test chamber

CE approved IPX3 IPX4 Programmable water spray test chamber rain spray test chamber
CategoriesReliable Test Chamber
BrandHUDA Test Machine Manufacturer
ModelHUD-E710-2
Internal dimension (W*D*H)1000*1000*1000mm
External dimension (W*D*H)1300*1100*1700mm
Oscillating tubeRadius 400mm
Oscillating speedIPX3: 2*120° for 4s IPX4: 2*360° for 12s
Spray nozzleDiameter: 0.4mm, removable
Water flow of each nozzle0.07 L/min +5%
Distance from nozzle to specimen surface200mm
FOB portshenzhen
Terms of PaymentL/C, D/A, D/P, T/T, Paypal
Download DOC
Update Time2021-12-01
Detail Information
Application

HUD-E710-2 is suitable for testing whether electrical products, housings and seals can ensure good performance of equipment and components in a rainy environment. This product adopts scientific design, so that the device can realistically simulate dripping, spraying, splashing, spraying and other environments.

Operation

For IPX4 water spray test, select a swing tube with an appropriate radius, make the height of the sample table at the position of the diameter of the swing tube, and place the sample on the sample table so that the distance between the top of the sample and the sample nozzle is not more than 200mm;


Test conditions: The water flow rate is calculated according to the number of spray holes of the pendulum pipe, and each hole is 0.07 L/min. The spray area is the water spray from the spray holes in the 90° arcs on both sides of the midpoint of the pendulum tube toward the sample. The test sample is placed in the center of the semicircle of the pendulum tube. The pendulum tube swings 180° on both sides of the vertical, a total of about 360° (IPX3 swings 60°, a total of 120°),

Paramater

Item

Specification

Internal dimension

(W*D*H)1000*1000*1000mm

External dimension

(W*D*H)1300*1100*1700mm

Oscillating tube

Radius 400mm

Oscillating angle

IPX3: spray ±60° from vertical line to each side, total 120°

IPX4: spray ±180° from vertical line to each side, total 360°

Oscillating speed

IPX3: 2*120° for 4s

IPX4: 2*360° for 12s

Spray nozzle

Diameter: 0.4mm, removable

Ensure the water sprays in a line and without tolerance

Distance between two nozzles

50mm

Turntable diameter

500mm

Turntable rotation speed

1-3 cycles/min

Water flow of each nozzle

0.07 L/min +5%

Test duration

1~999h999min, adjustable

Pressure gauge

80-150Kpa

Distance from nozzle to specimen surface

200mm

Chamber material

Stainless steel, with observation window

Safety protection device

Short circuit protection, grounding protection, water shortage protection, audible and visual alarm
