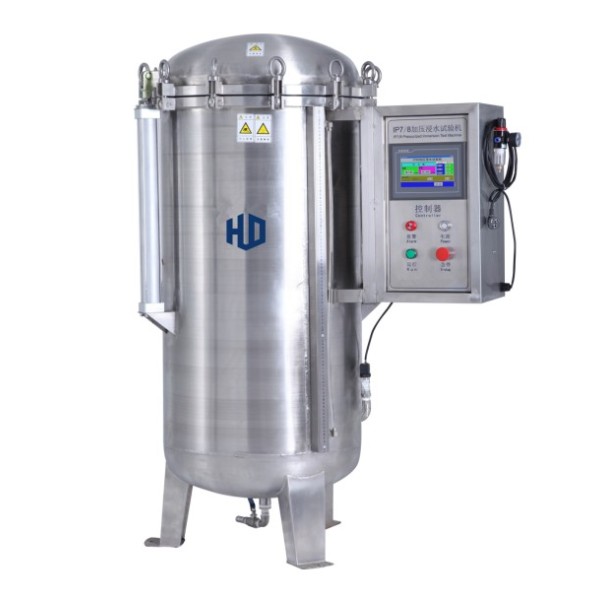

CE approved IPX7 IPX8 Automatic pressure water immersion test chamber For Waterproof Testing

CE approved IPX7 IPX8 Automatic pressure water immersion test chamber For Waterproof Testing

CE approved IPX7 IPX8 Automatic pressure water immersion test chamber For Waterproof Testing
CategoriesReliable Test Chamber
BrandHUDA Test Machine Manufacturer
ModelHUD-E710-4
Internal dimension (W*D*H)Diameter 600 * height 1000mm
External dimension (W*D*H)Diameter 820 * height 1200mm
Chamber materialSUS#304, thickness 2mm
Water depthSimulate 50m depth by air compressor
Water pressureAmbient to 0.5MPa, pressure gauge accuracy 0.25 de
FOB portshenzhen
Terms of PaymentL/C, D/A, D/P, T/T, Paypal
Download DOC
Update Time2021-12-01
Detail Information
Application

HUD-E710-4 is suitable for outdoor lighting, outdoor lamps, household appliances, communication products, signal devices and automotive lamps and other products to do shell protection level test (IP waterproof level test). At the same time meet the IPX7, IPX8 immersion and diving test.

Operation

Put the sample under normal use into the test box, set the mode underwater depth pressure value and test time, after the test is completed, check whether the sample meets the standard requirements.

Standard

GB-4208, DIN-40050-9, IEC-60529, ISO-20653.

Paramater

Item

Specification

Internal dimension

Diameter 600 * height 1000mm

External dimension

Diameter 820 * height 1200mm

Chamber material

SUS#304, thickness 2mm

Water depth

Simulate 50m depth by air compressor

Water pressure

Ambient to 0.5MPa, pressure gauge accuracy 0.25 degree

Timer

0 ~ 99min, 99sec

Sample lift device

Portable stainless steel basket

Water level display

Water pipe with scale

Protection device

Pressure protection and anti-explosive device, water drain and pressure release device

Safety protection

Power overload protection, short circuit protection, grounding protection, alarm display
