HUD-H209

Battery Burning Test Chamber is suitable for the flame resistance test of lithium batteries (or battery packs).


Specifications

ModelHUD-H209
1. Control method

 button control;

2. Burner

 Bunsen burner, the inner diameter of the tube mouth is 10mm, and the length is about 100mm;

3. Flame application time

 0~99H99M, can be set;

4. Diameter of test hole

 100±2mm;

5. Test sieve

 a sieve made of stainless steel wire woven with a diameter of 0.43mm (0.017inch), containing 20 meshes per inch;

6. The height of the flame from the screen

 38mm;

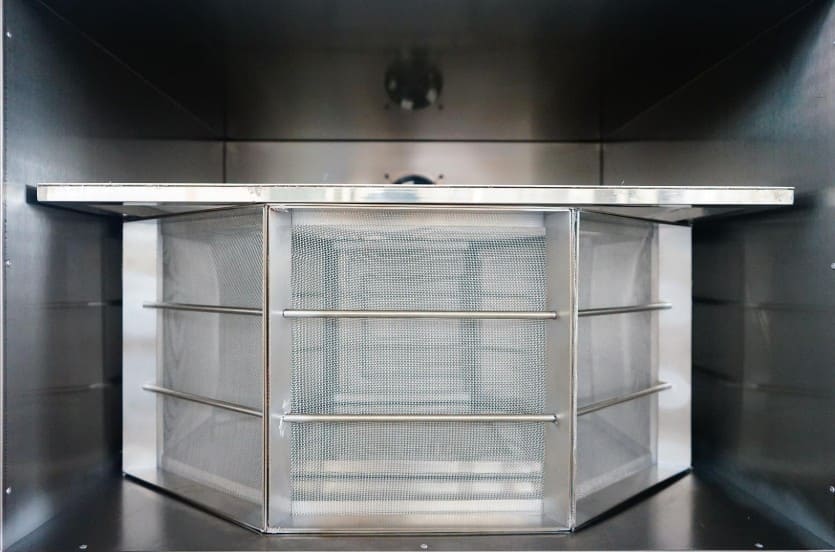

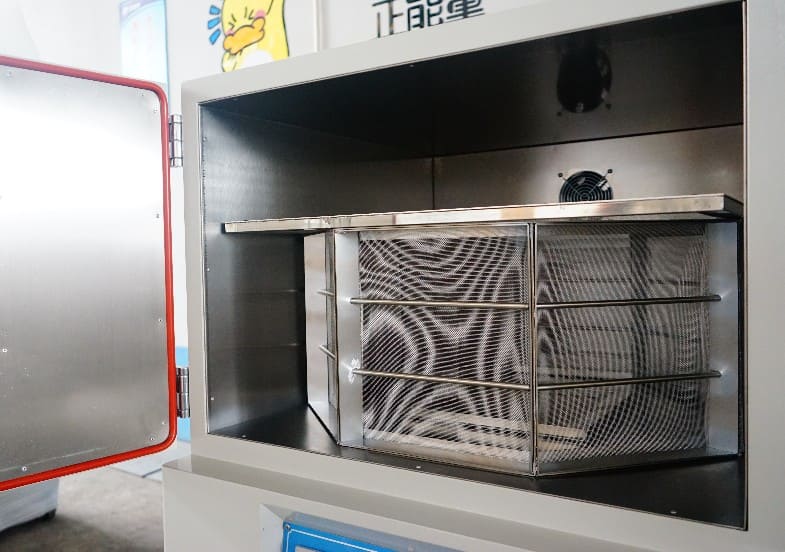

7. Octagonal mesh cover

 the distance between each pair of faces is 24" (that is, 610mm), and the eight faces are movable, which is convenient for replacement and disassembly;

8. The height of the octagonal net cover

 12" (that is, 305mm);

9. Octagonal cover material

 aluminum mesh, composed of 0.25mm diameter aluminum wire woven into a mesh containing 16-18 meshes per inch.

10. Material of battery mesh

 stainless steel mesh;

11. Combustion gas

 methane or liquefied petroleum gas (customer-provided);

12. Inner box size

 750x750x500mm (width x depth x height);

13. Dimensions

 1000x950x1310mm (width x depth x height, including door lock);

14. Pressure relief door size

 200x200mm;

15. Smoke exhaust pipe

 diameter φ100mm, located at the back of the box;

16. Box door

 a single door opens to the left, and an explosion-proof chain is installed on the side of the box door;

17. Power supply

 1, 220V, 50/60Hz, 200W

18. Equipment weight

 about 160kg




Features

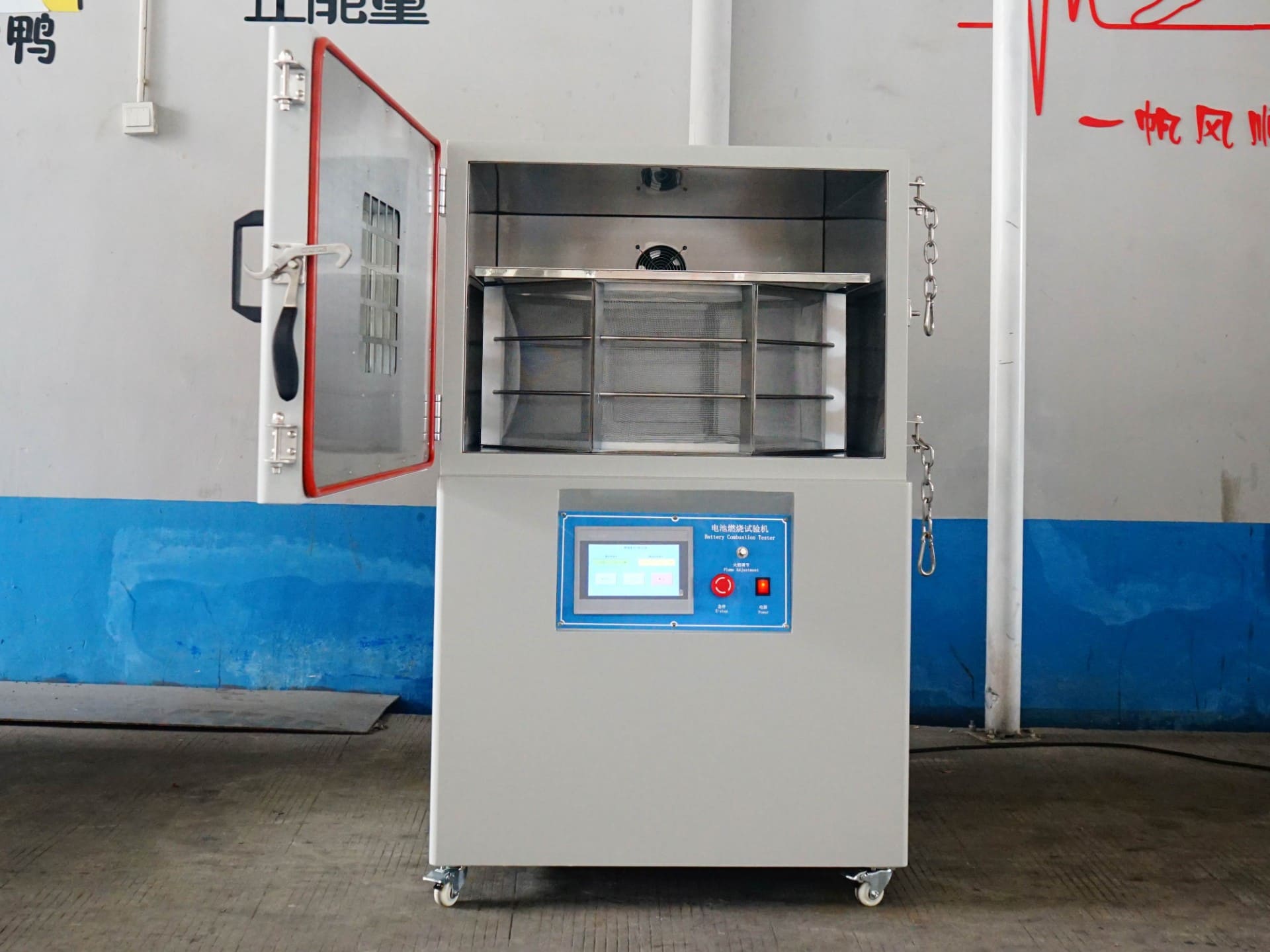

  • HUD-H209 Battery Burning Test Chamber b.jpg

    STANDARDS

    UL 1642:2012 "Lithium Battery Standard"

    UN38.3(2012) "Recommendations on the Transport of Dangerous Goods-Manual of Tests and Standards" Part III

    IEC62133-2012 "Safety requirements for batteries and battery packs containing alkaline or non-acid electrolytes"

    GB/T 31241-2014   "Safety requirements for lithium-ion batteries and battery packs for portable electronic products"

  • WORKING PRINCIPLE

    1 Drill a round hole with a diameter of 102mm on an experimental platform, and place a steel wire mesh on the round hole.

    2 Place the battery under test on the steel wire mesh screen, install an octagonal aluminum wire mesh around the sample.

    3 Ignite the burner heats the sample until the battery explodes or the battery burns out, and the combustion process is timed.

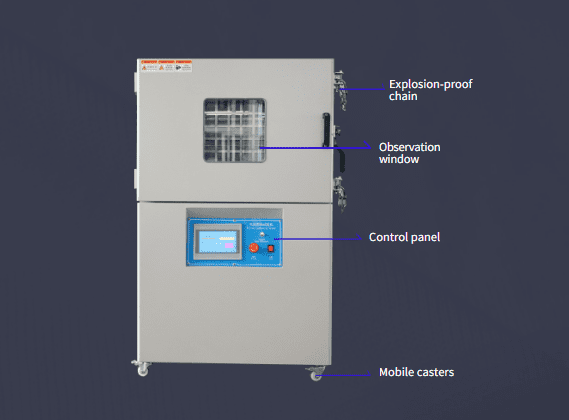

    Battery Burning Test Chamber
  • Battery Burning Test Chamber

    SAFETY SYSTEM

    Explosion-proof pressure relief device

    Smoke exhaust device

    Fire extinguishing system

    Electronic door lock system

    Safety stop switch
