Servo motor;

2. Control method

 PLC touch screen control;

3. Force range

 1～20kN;

4. Extrusion stroke

 250mm;

5. Force value display

 PLC touch screen control;

6. Extrusion head area

 ≥20cm²;

7. Extrusion degree

 Extrusion pressure reaches 13±0.2kN, keep it for 1min;

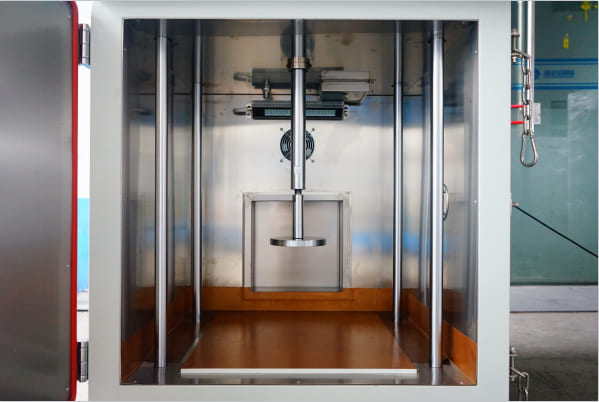

8. Test space

 200x200x200mm (width x depth x height);

9. External material

 A3 steel plate and painted, thickness 1.5mm;

10. Material of inner box

 SUS#304 thickness 1.2mm;

12. Inner box size

 520x450x560mm (width x depth x height);

13. Dimensions

 800x700x1720mm (width x depth x height, including door lock);

14. Pressure relief door size

 200x200mm, located at the back of the box;

15. Features

 The rear side of the box is designed with an exhaust port, and the box is equipped with a lighting lamp

16. Weight

 about 220kg

17. Power supply

 AC380V, 50HZ
