Specifications

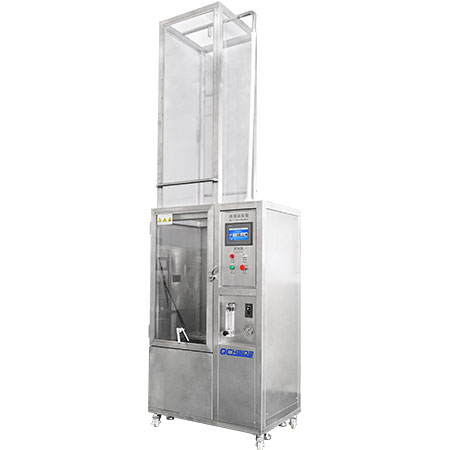

Type | VERTICAL TYPE | HORIZONTAL TYPE |
Internal chamber size | 800Wx800Dx800Hmm | 1000Wx1000Dx1000Hmm |

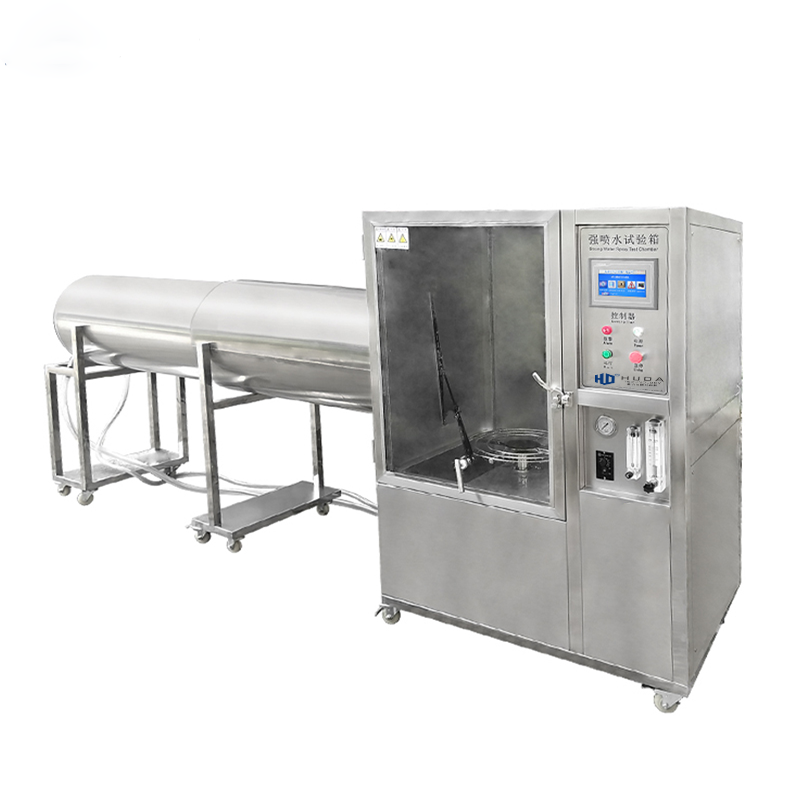

External chamber size | 1200Wx900Dx3300Hmm | 3500Wx1250Dx1800Hmm |
IP Code | IPX5 | IPX6 |

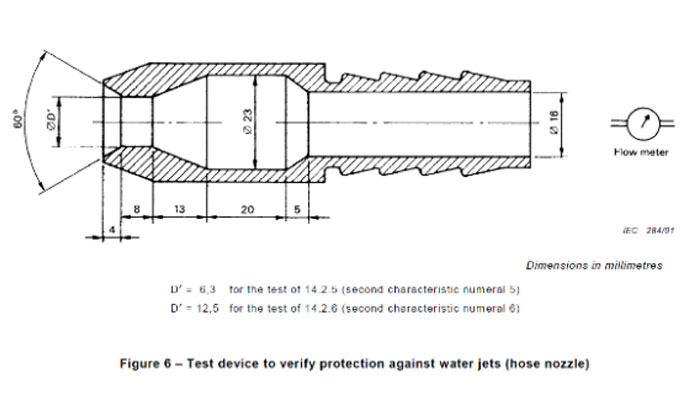

Internal diameter of spray nozzle | 6.3mm | 12.5mm |
Delivery rate | 12.5l/min±5% | 100l/min±5% |
Core of the substantial stream | Circle of approximately 40mm diameter at 2.5m distance from nozzle | Circle of approximately 120mm diameter at 2.5m distance from nozzle |
Chamber material | Internal: SUS304 stainless steel, external: stainless steel | |
Turn plate | Φ500mm | |
Spray duration time | 3,10,30,9999 min(adjustable) | |
Operating time | 1-9999min(adjustable) | |
Controller | PLC touch screen | |

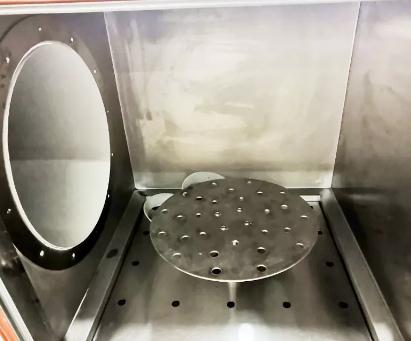

Turntable | Diameter 300mm, rotate speed 3±1R/min | |
Distance from nozzle to enclosure surface | Between 2.5m and 3m | |
Power supply source | 3-phase, 380V±10%, 50Hz (can be appointed) | |
Features
Chamber Structure
Material:SUS stainless steel plate.
Visual glass door is convenient for observing the condition of the test sample in the body of the test chamber.
High-quality fixed PU movable wheel (easy to move).
Equipped with water storage tank, test water spray system, table rotation system, water recyclability.
Water Pressure Control System
It is designed and manufactured according to the technical requirements of IEC 60529.
Device composition:a pressurized water pump, a pressure regulating valve, a flow regulator, an electric control cabinet, a water pipe, a diversion device, a spray bracket and a water tank, and the water can be recycled.
Control System
The frequency converter is used to control the speed to effectively ensure that the test runs according to the standard.
Equipped with water filter.

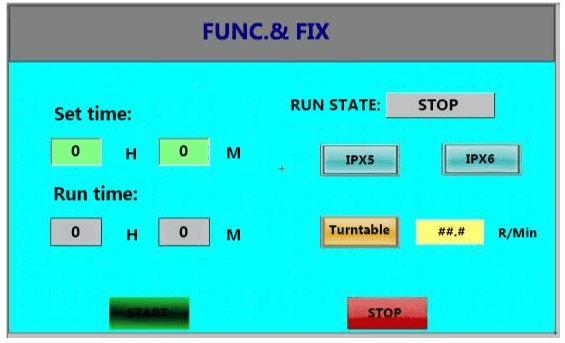

PLC touch screen.
Layout of the electrical board is reasonable, the wiring is firm and the marking is clear.
IP series
| IP SERIES | ||
IPX-1 | Protected against falling water | Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes. Unit is placed in its normal operating position. |
IPX-2 | Protected against falling water | when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions - tilted 15 degrees in each direction from normal operating position. |
IPX-3 | Protected against spraying water | Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min. |
IPX-4 | Protected against splashing water | Same as IPX-3 but water is sprayed at all angles. |
IPX-5 | Protected against water jets | Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters. |
IPX-6 | Protected against heavy seas | Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters. |
IPX-7 | Protected against water immersion | Immersion for 30 minutes at a depth of 1 meter. |
IPX-8 | Protected against water submersion | The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer. |
IPX-9 | Protection against high-pressure water splashes | The water pressure should be 8–10 MPa (80–100 bar) at distance of 0.10–0.15 meters.The water temperature should be 80 °C. |
