IPX9K High Temperature & Pressure Water Test Chamber
IPX9K High Temperature & Pressure Water Test Chamber
IPX9K High Temperature & Pressure Water Test Chamber
IPX9K High Temperature & Pressure Water Test Chamber
IPX9K High Temperature & Pressure Water Test Chamber
IPX9K High Temperature & Pressure Water Test Chamber

IPX9K High Temperature & Pressure Water Test Chamber

HUD-E710-6

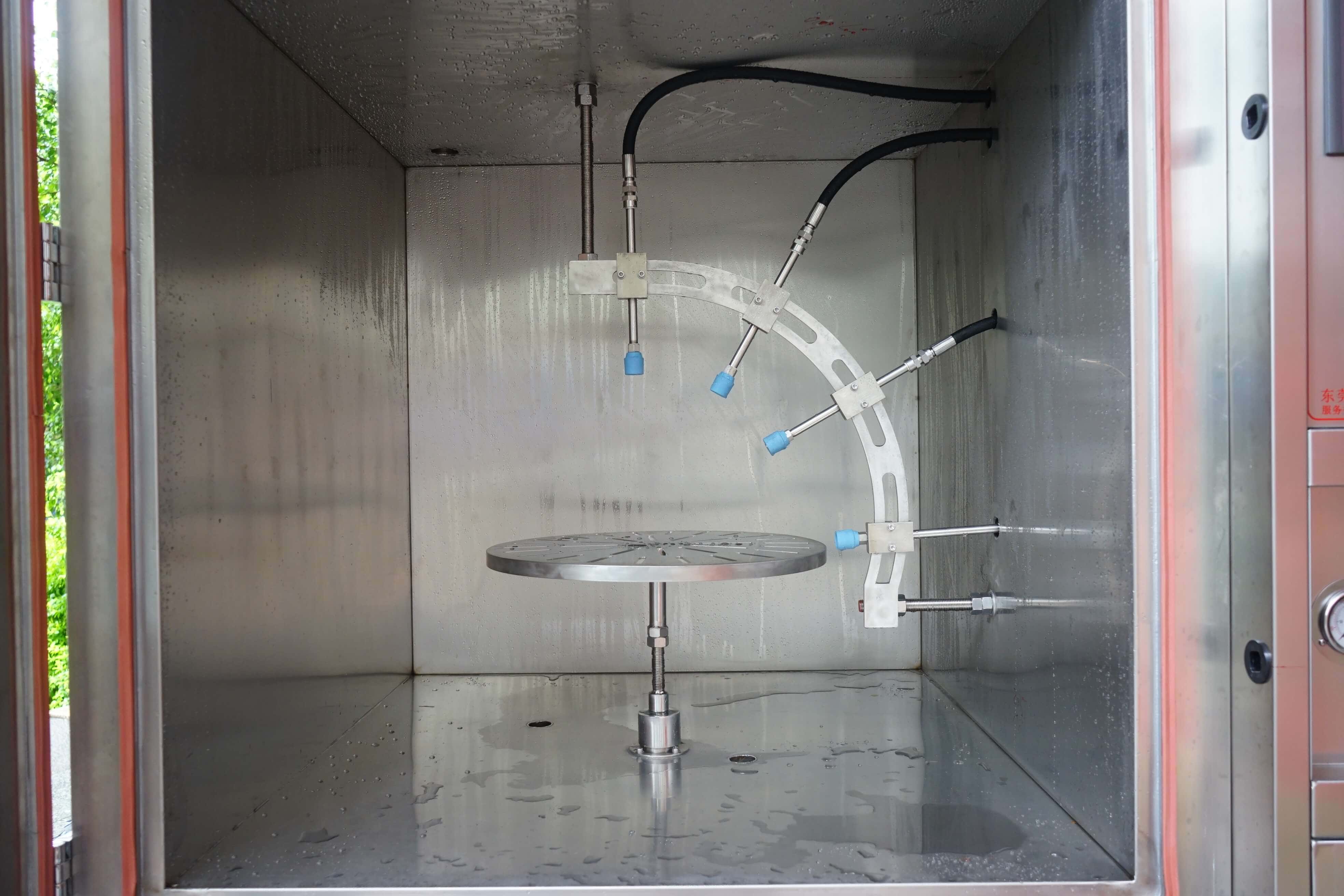

IPX9K High Temperature & Pressure Water Test Chamber is suitable for simulate the high temperature and high pressure spraying, steam jet cleaning test for electrical and electronic products, to check whether the enclosures and covers of samples are in good condition.


Specifications

ModelHUD-E710-6
Internal dimension (W*D*H)

1000*1000*1000mm

External dimension (W*D*H)

1600*1250*2100mm

Spray water temperature

80

Spray water pressure

80 to 100bar (8000 to 10000Kpa)

Water flow

14 to 16L/min

Spray water distance

10 to 15cm

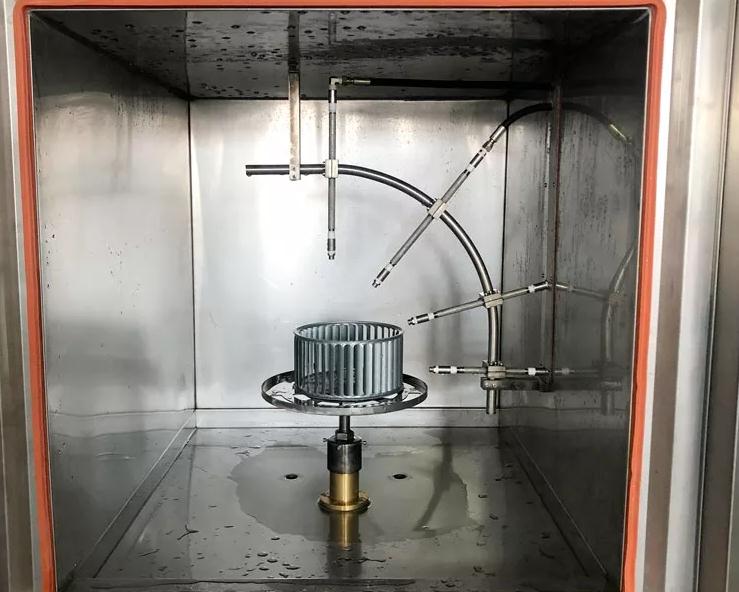

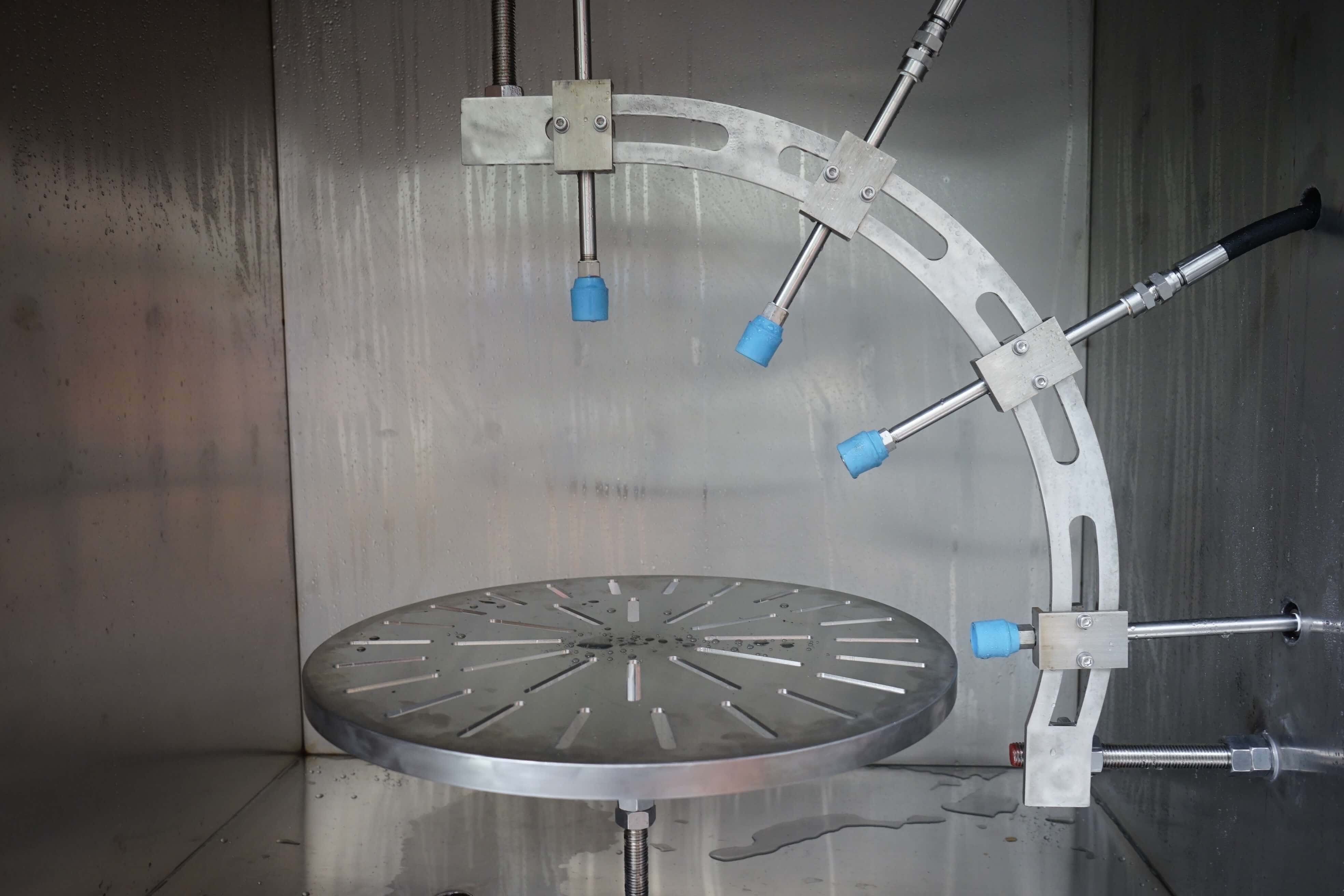

Spray water angle

0°, 30°, 60°, 90°, each angle spray for 30 seconds

Sample turntable

5±1rpm

Water spray interval time

30 seconds (adjustable)

Water cycling system

Built-in chamber bottom for recycling

Controller

PLC touch screen

Chamber material

Internal: SUS304 stainless steel, external: stainless steel

Power source

3-phase, AC380V±10%, 50Hz



Features

  • DETAILS

    Chamber material: SUS304 stainless steel,non-rusty

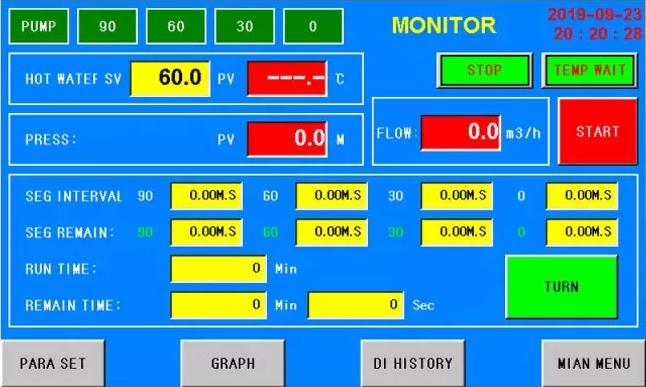

    Programmable color display touch screen controller

    Automatic water supply & water tank for recycling use of water

    Large viewing window with wiper

    Internal waterproof LED lighting,easy to observe

    Safety protection :power supply overload /short circuit /grounding /water shortage protection

    PT-100 Temperature sensor for high precision of water temperature

  • CONTROL SYSTEM

    Timing Control: Equipped with digital timer, the test time can be adjusted at will within the range.

    Speed Control: Frequency conversion governor, speed control is stable, high control accuracy.

    Flow and Pressure Control: Manual valve control flow and pressure, digital flow meter indicating the flow, spring pressure gauge indicating the pressure.

    IPX9K High Temperature & Pressure Water Test Chamber
  • IPX9K High Temperature & Pressure Water Test Chamber

    STANDARDS

    ISO16750-1-2006,ISO20653,DIN40050-9,IEC60529,GMW3172(2007),VW80106-2008,QC/T417.1 (2001),GB4208

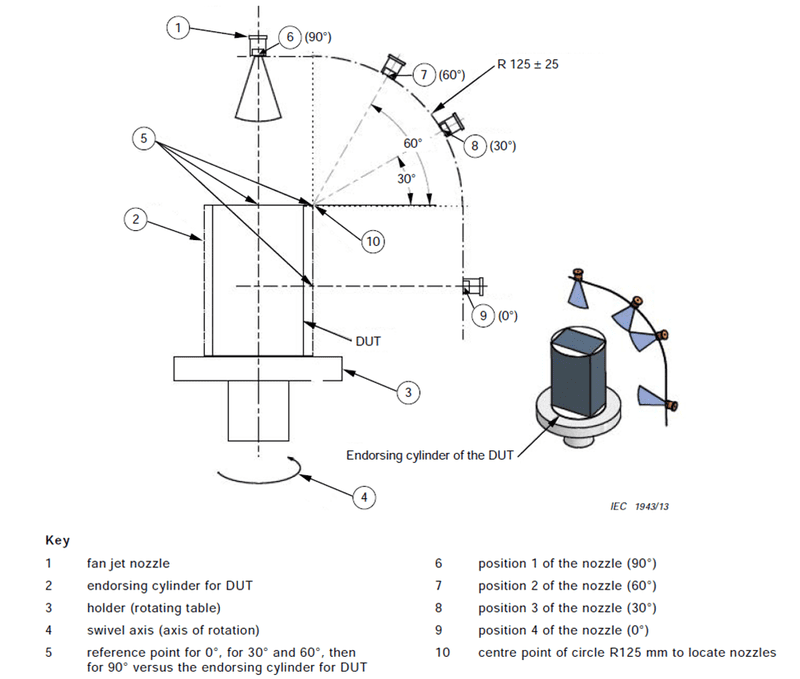

Structures

IPX9K High Temperature & Pressure Water Test Chamber 1.png

IP series

IP SERIES

IPX-1

Protected against falling water

Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes. Unit is placed in its normal operating position.

IPX-2

Protected against falling water

when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions - tilted 15 degrees in each direction from normal operating position.

IPX-3

Protected against spraying water

Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.

IPX-4

Protected against splashing water

Same as IPX-3 but water is sprayed at all angles.

IPX-5

Protected against water jets

Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.

IPX-6

Protected against heavy seas

Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.

IPX-7

Protected against water immersion

Immersion for 30 minutes at a depth of 1 meter.

IPX-8

Protected against water submersion

The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.

IPX-9

Protection against high-pressure water splashes

The water pressure should be 8–10 MPa (80–100 bar) at distance of 0.10–0.15 meters.The water temperature should be 80 °C.
