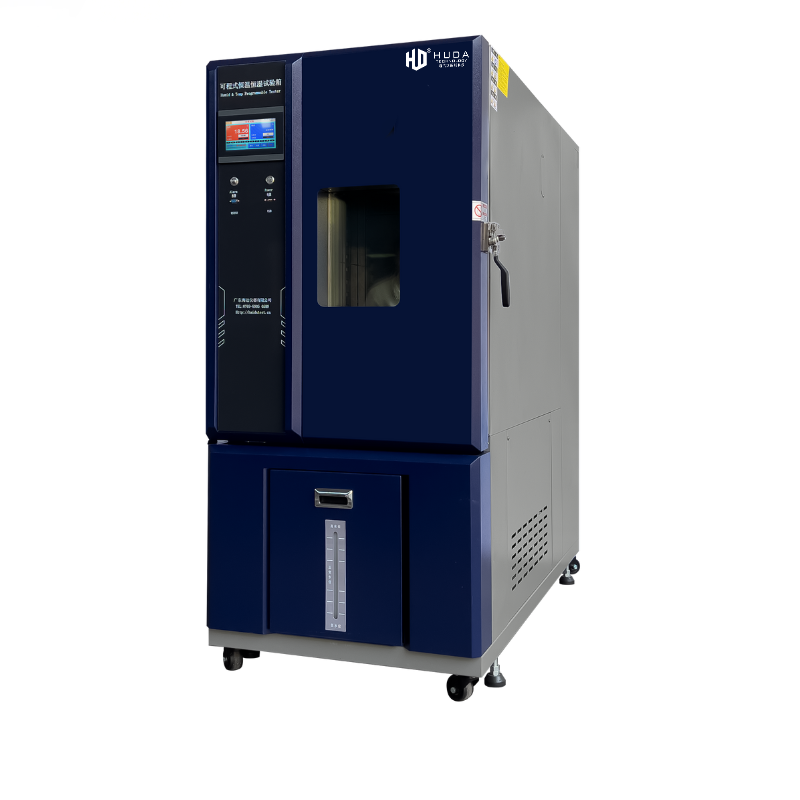

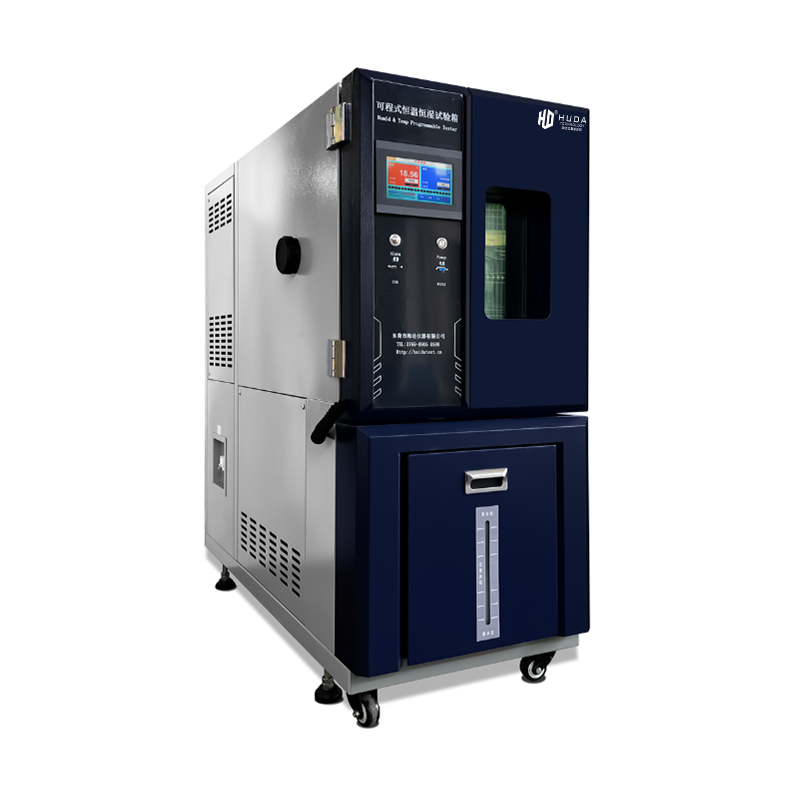

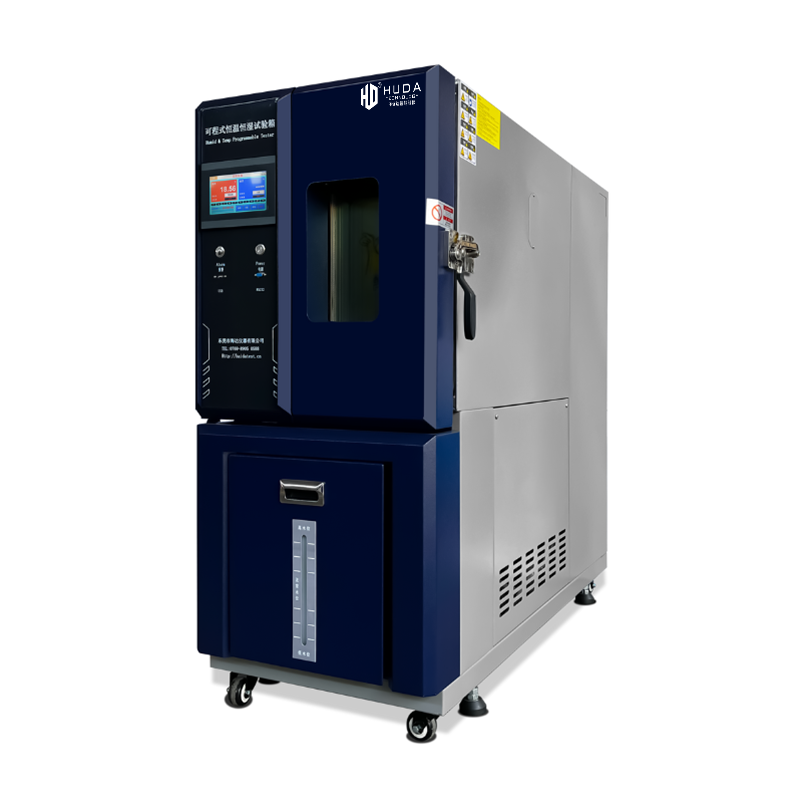

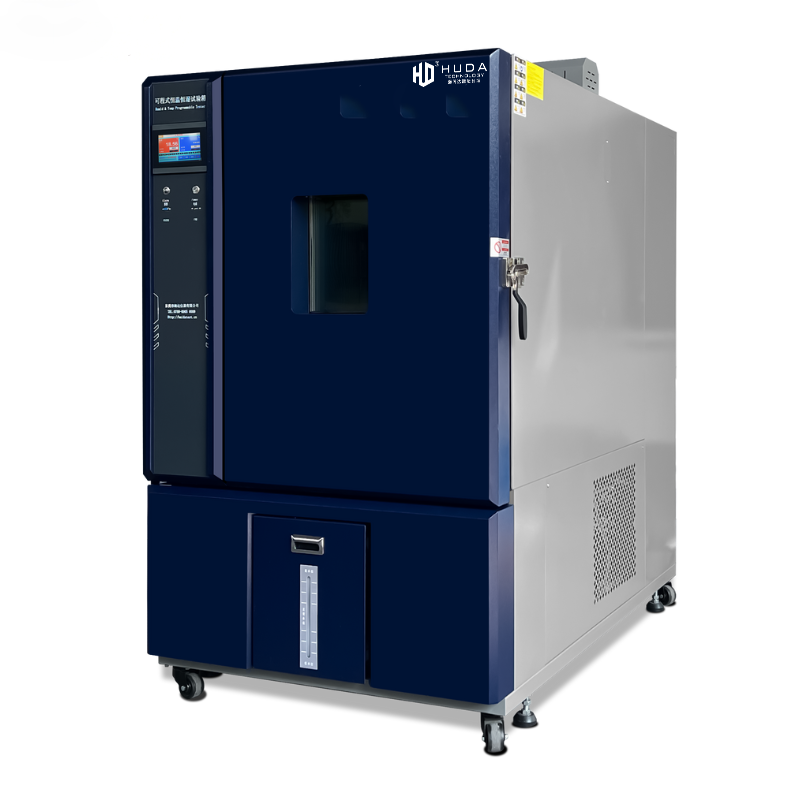

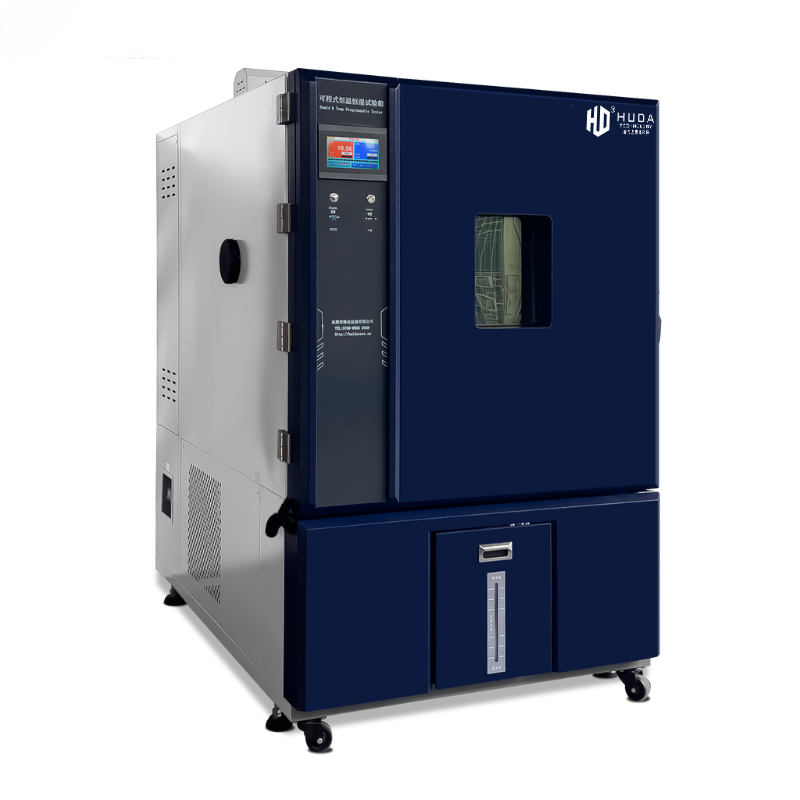

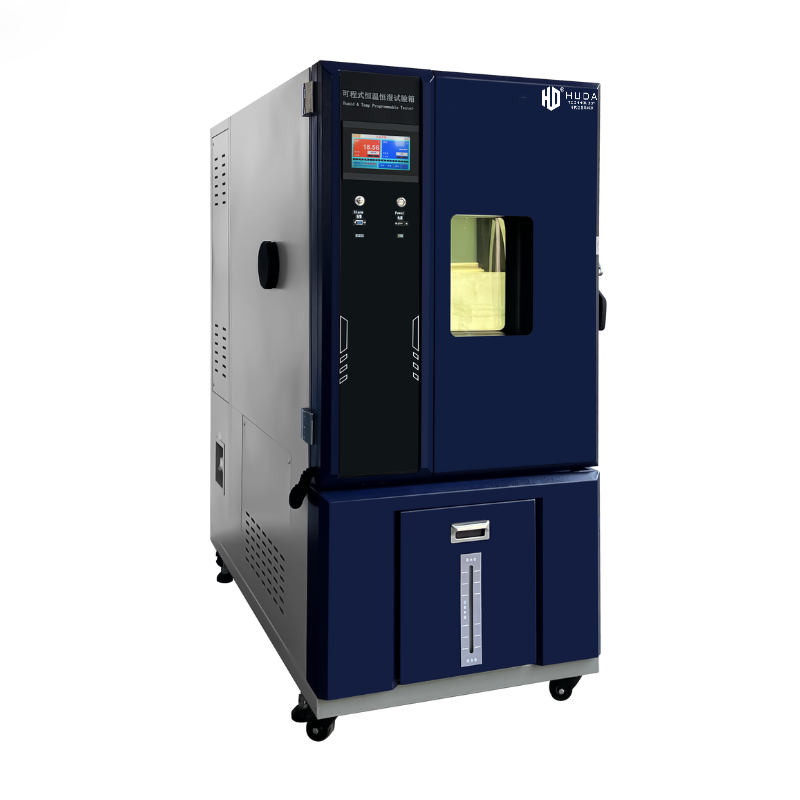

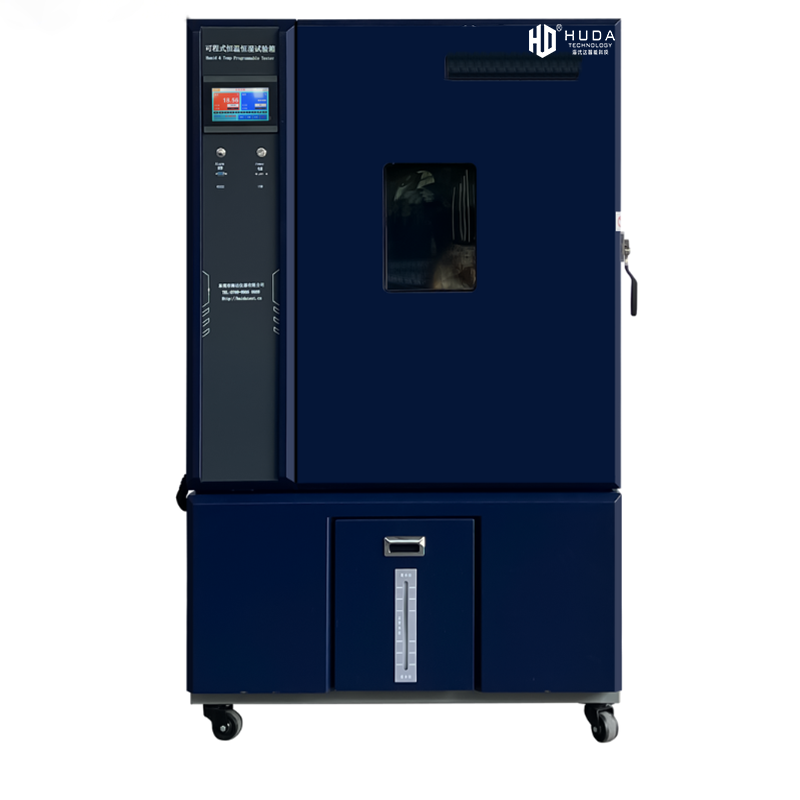

HUD-E702

Temperature Humidity Test Chamber, also known as Climatic Chamber or Environmental Test Chamber.

It is wildly used for quality assurance and reliability testing in fields like the electronics, electrical appliances, mobile phones, communications,vehicles, plastics, metals,engineering, pharmaceutical, aerospace...

Standards

From the source of materials to product packaging full testing
01
International Electrotechnical Commission Standard
02
Military Standards
03
Japanese Industrial Standard
04
USA Semiconductor Industry Standard
05
Chinese National Standard
06
China's National Military Environment Test Equipment

International Electrotechnical Commission Standard

IEC60068-2-1 Environmental testing - Part 2: Test methods - Tests A: Cold

IEC60068-2-2 Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat

IEC60068-2-3 Environmental testing for electric and electronic products - Part 2: Testing method test Cab: Damp heat Steady state

IEC60068-2-30 Environmental testing for electric and electronic products - Part 2: Test method - Test Db: Damp heat,cyclic ( 12h+12h cycle)

IEC60068-2-14 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature


Military Standards

MIL-STD-810D High temperature test

MIL-STD-810D Low temperature test

MIL-STD-810D Damp heat test


Japanese Industrial Standard

JIS C60068-2-3-1987 test method Ca: Steady damp-heat

JIS C60068-2-2-1995 test method B:dry heat

JIS C60068-2-1-1995 test method A:low temperature


USA Semiconductor Industry Standard

JESD22-A101-B-2004 Constant temperature and humidity test

JESD22-A103-C-2004 High Temperature Storage Test

JESD22-A119-2004 Low Temperature Storage Test


Chinese National Standard

GB11158 Technical conditions for high-temperature testing box

GB10589-89 Technical conditions for low-temperature testing box

GB10592-89 Technical conditions for high and low temperature testing box

GB/T10586-89 technical conditions for humidity testing chamber

GB/T2423.1-2001 Low-temperature testing methods

GB/T2423.2-2001 High-temperature testing methods

GB/T2423.3-93 Testing Method for humidity Test Chamber

GB/T2423.4-93 Alternating hot and humid testing method

GB/T2423.22-2001temperature testing method


China's National Military Environment Test Equipment

GJB150.3 high-temperature testing

GJB150.4 low-temperature testing

GJB150.9 hot and humid condition testing

Specification

Model

HUD-E702-100

HUD-E702-150

HUD-E702-225

HUD-E702-408

HUD-E702-1000

Internal dimension

400*500*500mm

500*600*500mm

500*750*600mm

600*850*800mm

1000*1000*1000mm

External dimension

740*1700*1380mm

870*1800*1430mm

870*1890*1530mm

1070*1900*1630mm

1240*1970*2230mm

Temperature range

-60℃/-40℃/-20℃+150℃

Temperature fluctuations

≤±0.5℃ without load and temperature stable

Temperature uniformity

≤4℃    without load and temperature stable

Temperature deviation

≤±2℃   without load and temperature stable

Heating rate

+25℃+150℃≥40minwithout load

Cooling rate

+25℃-70℃≥80min without load

Power

3 phase, AC380V, 50Hz, about 5KW

Humidity range

Temperature : +20℃+85℃Humidity20%98%RH

Humidity deviation

1≥75%RH : ≤±3%RH

2≤75%RH≤±5%RH

Noise

≤75db, measured from one meter in front of door, at 1.2meter height.

Details

  • Temperature Humidity Test Chamber

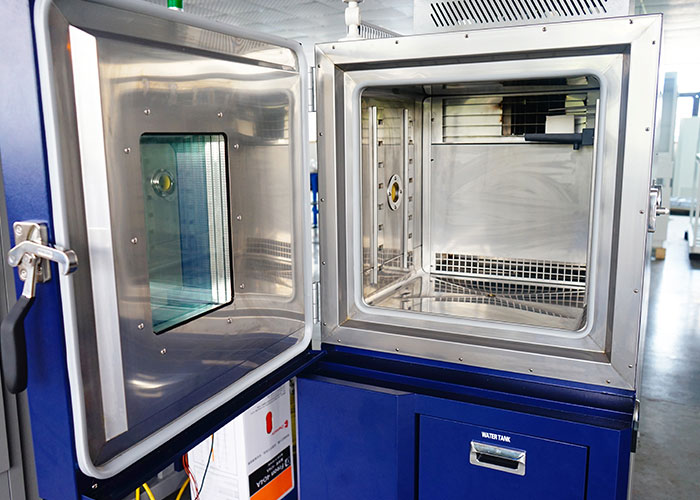

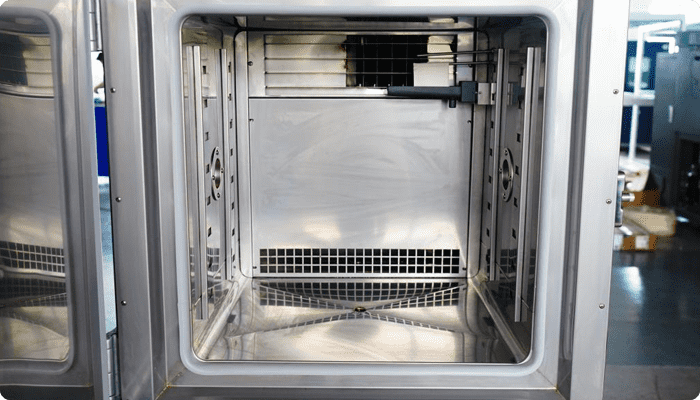

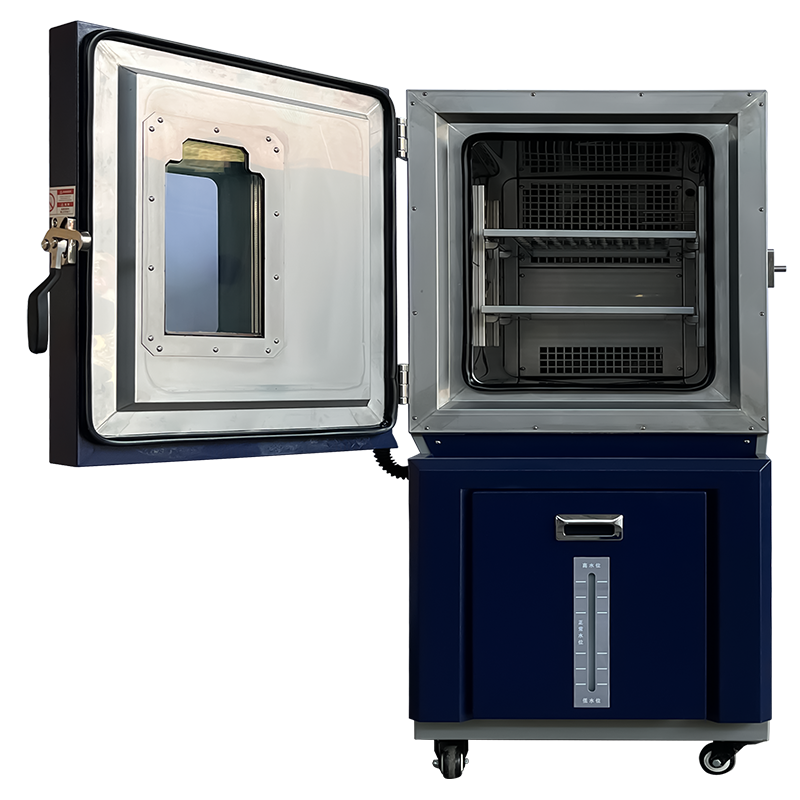

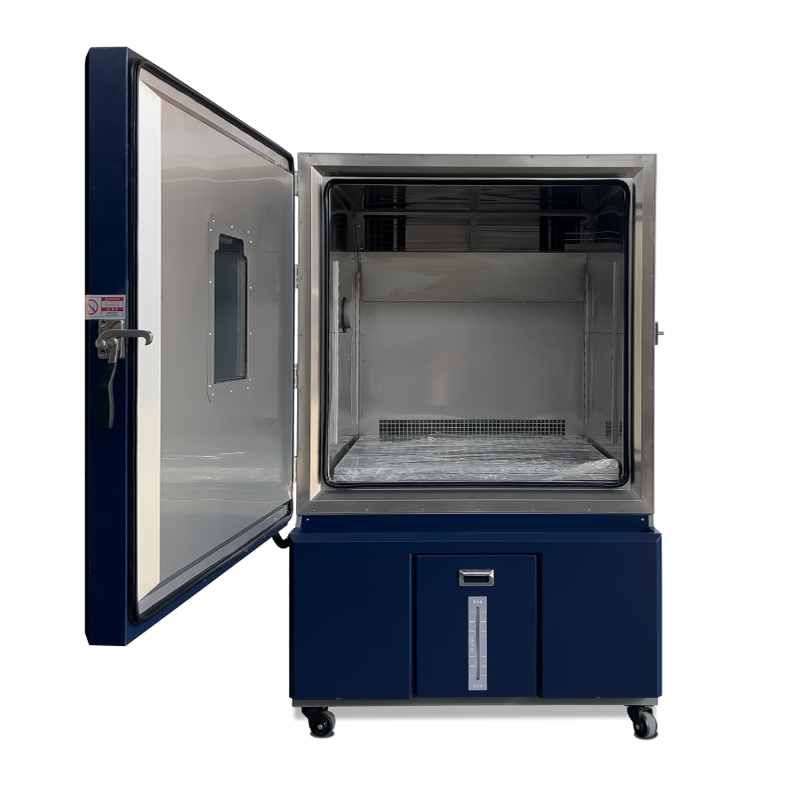

    Inner Chamber

    Outer wall: 1.5mm cold-rolled steel plate with plastic-sprayed surface;

    Insulation layer: 100mm polyurethane foam + ultra-fine glass wool, to ensure that the outer surface of the test box does not frost and dew;

    Inner wall: 1.2mmSUS304 # stainless steel plate;

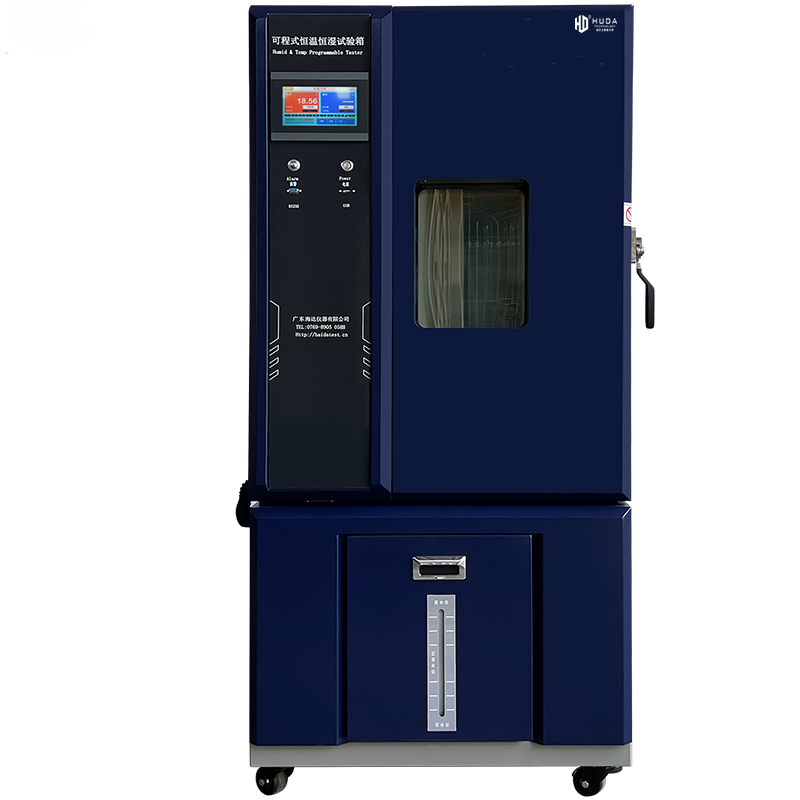

  • Control system

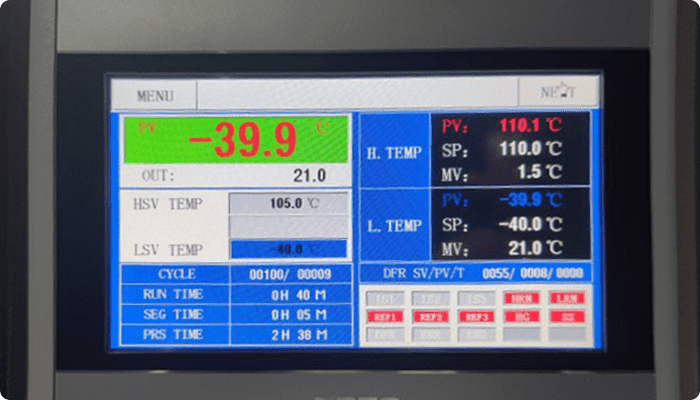

    7 ”TFT color touch screen controller

    P.I.D control parameters: 9 sets of PID control parameters are automatically calculated

    Screen functions Touch input, display temperature and humidity set value and measured value, display various parameters of program operation, operation timing, display equipment operation curve and history curve, Chinese and English interface optional, fault prompt screen, screen backlight adjustable.

    Temperature Humidity Test Chamber
  • Temperature Humidity Test Chamber

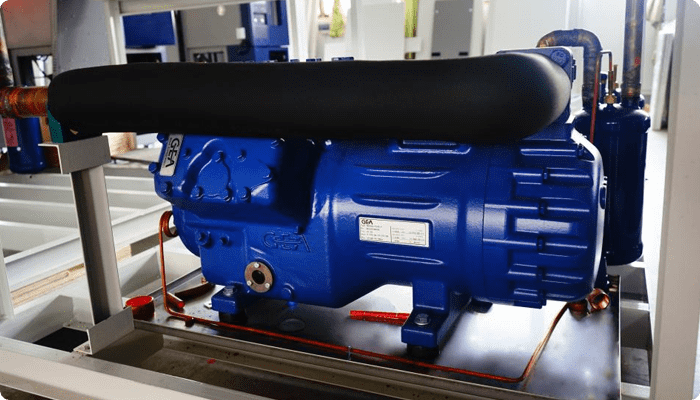

    Refrigeration System

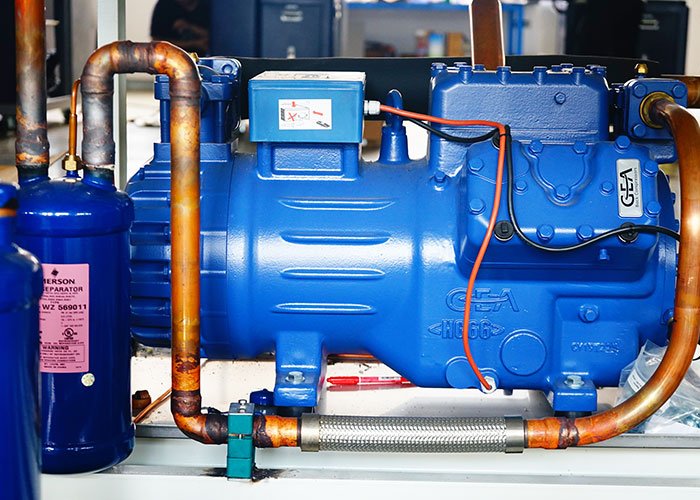

    Mechanical compression refrigeration;

    Compressor starts at the suitable time, reducing the compressor starting current and reducing the interference to the power grid;

    The controller + solenoid valve on and off to control the refrigerant flow for cold balance control;

    No cooling during heating, no heating during cooling, because the cooling balance method can reduce the consumption of compressor and heating system, and theoretically can save 20% or more energy at low temperature;

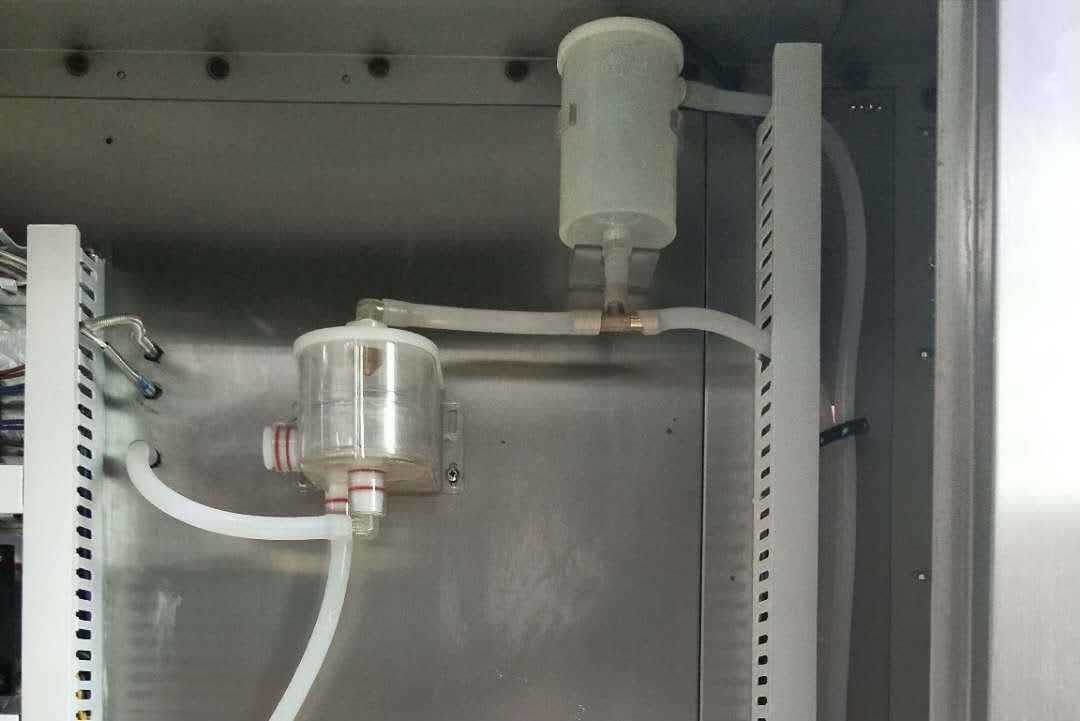

  • Humidity System

    Water circuit separation to ensure safety

    Temperature Humidity Test Chamber
  • Temperature Humidity Test Chamber

    Safety System

    1 over temperature alarm

    2 leakage protection

    3 over current protection

    4 lack of phase protection

    5 overpressure protection

    6 grounding protection

    7 water shortage protection

    8 gas shortage protection

  • Electrical System

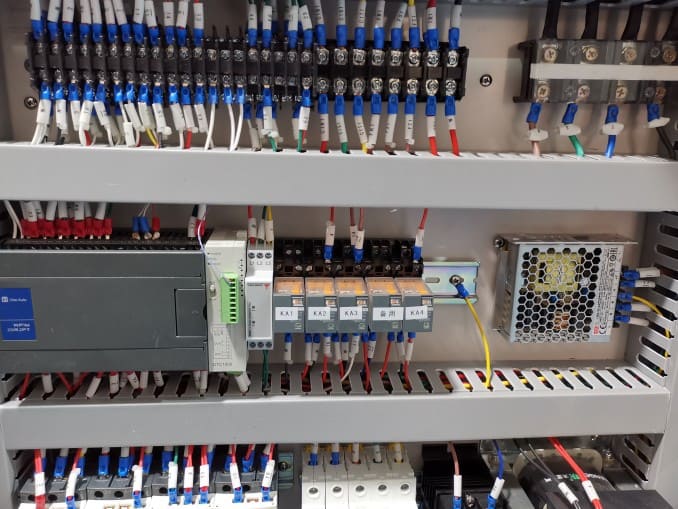

    Wiring neatly, all components with a label to show its function

    Temperature Humidity Test Chamber
