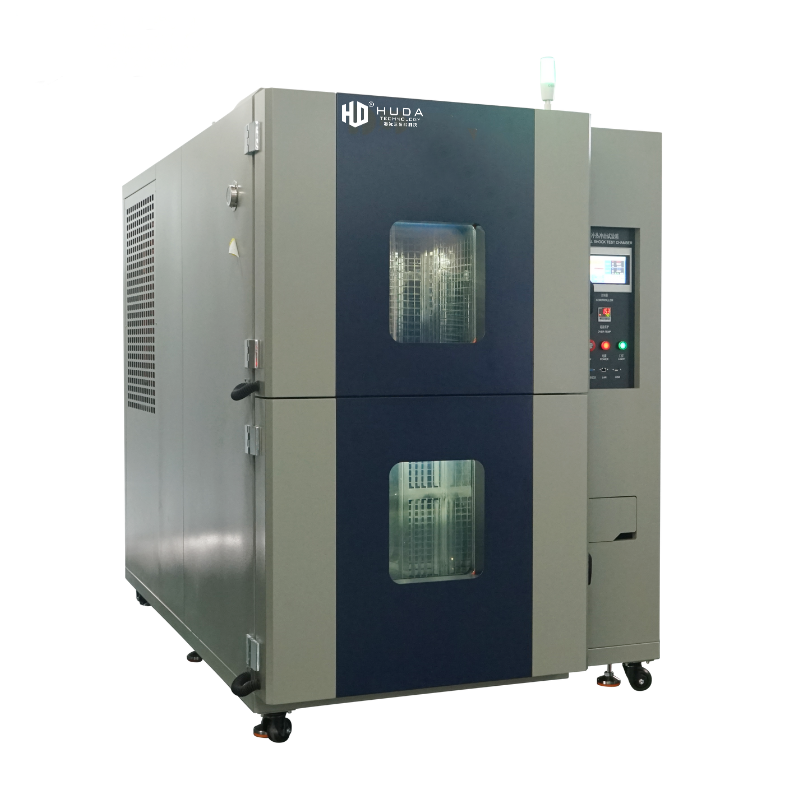

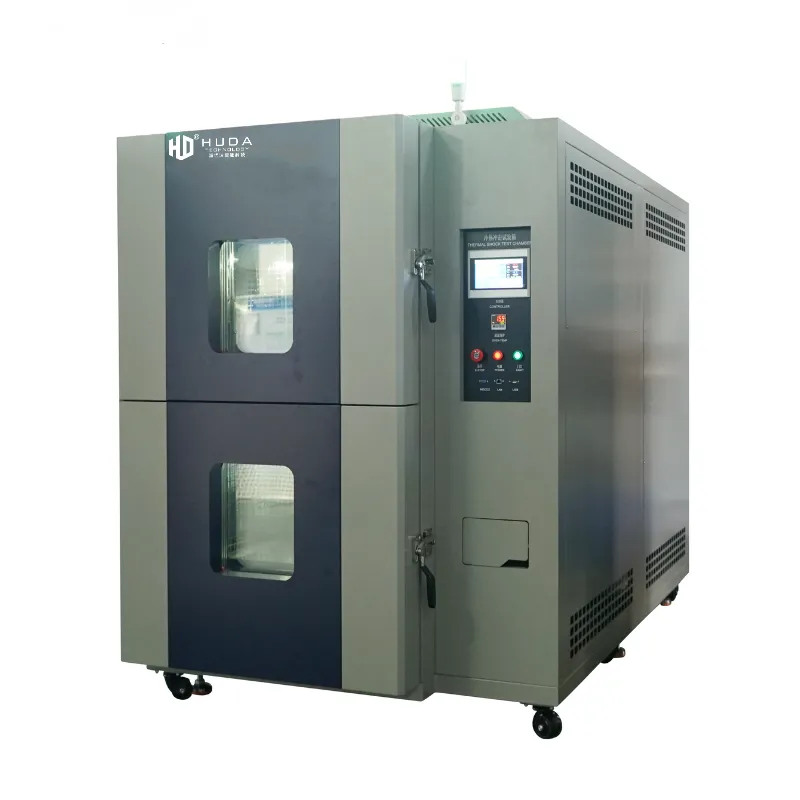

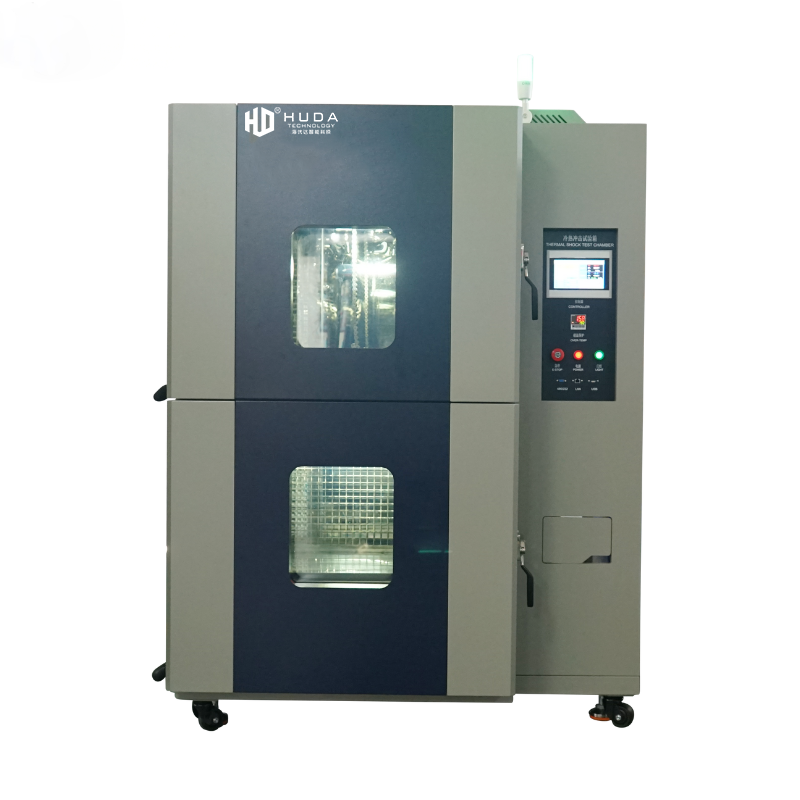

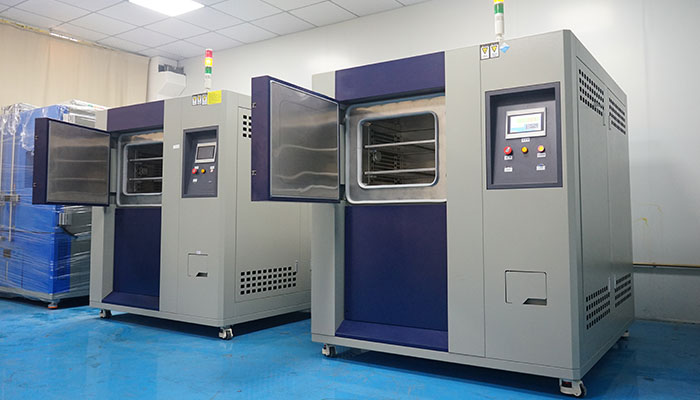

HUD-E703

Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.




  • Features

    1.Perfect appearance and easy to operate.

    2.Imported LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.

    3.Two chamber structures, high temperature chamber and low temperature chamber, control automatically, stay and switch time adjustable.

    4.Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…

    5.Control interface will display alarm reason and provide check methods, machine has emergency stop button.

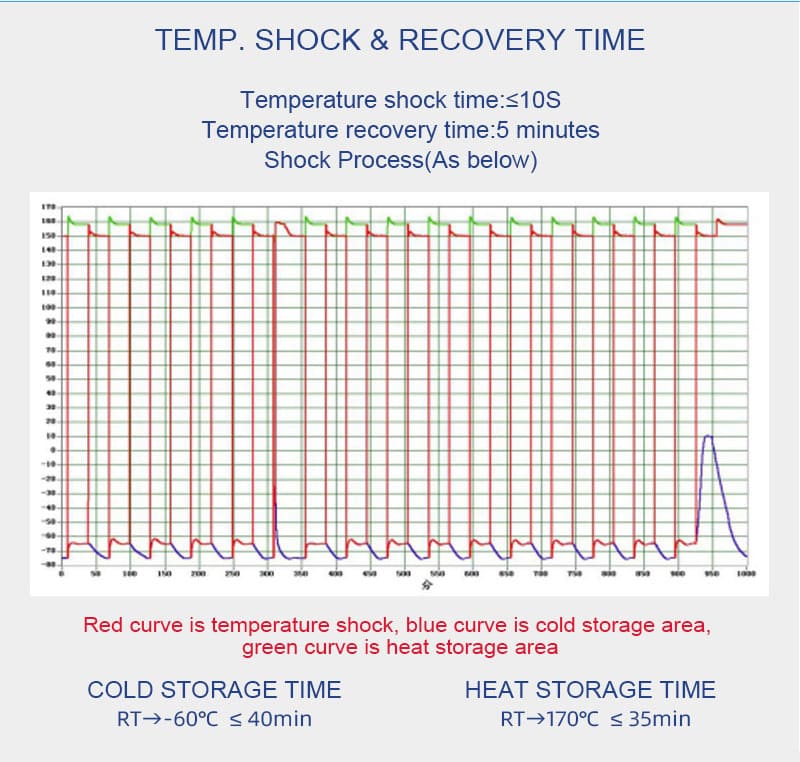

    6.Cold and hot shock temperature recover within1 minute, which complies with MTL, IEC, JIS, GJB and other international standards.

Specifications

Item

Specifications

Model

HUD-E703-50

HUD-E703-100

HUD-E703-150

HUD-E703-200

HUD-E703-300

Test method

Pneumatic operated, 2 or 3 zone

Basket internal dimension

350W*400D*350Hmm (50L)

500W*450D*450Hmm (100L)

550W*450D*550Hmm (150L)

650W*450D*670Hmm (200L)

800W*450D*820Hmm (300L)

External chamber dimension

1230Wx1830Dx1270Hmm

1380Wx1980Dx1370Hmm

1420Wx2000Dx1400Hmm

1530Wx1980Dx1590Hmm

1680Wx1980Dx1735Hmm

High temperature chamber preheating range

Ambient to +160,<35min

Low temperature chamber precooling range

Ambient to -50℃,<70min

Test temperature

-40 to +150

Temperature deviation

3~5℃

Lifting switch time

≤10 seconds

Test duration

>30mins in high temperature chamber / low temperature chamber

Test hole for cable routing

Diameter 50mm on the left of chamber attach a silicone plug

External chamber material

High quality electrolytic steel plate spray with powder, antirust

Internal material

SUS#304 stainless steel

Thermal insulation material

High quality superfine glass fiber

Refrigerant

R404A / R23

Cooling method

Water cooling

Power supply

Three phase, 380V, 50Hz

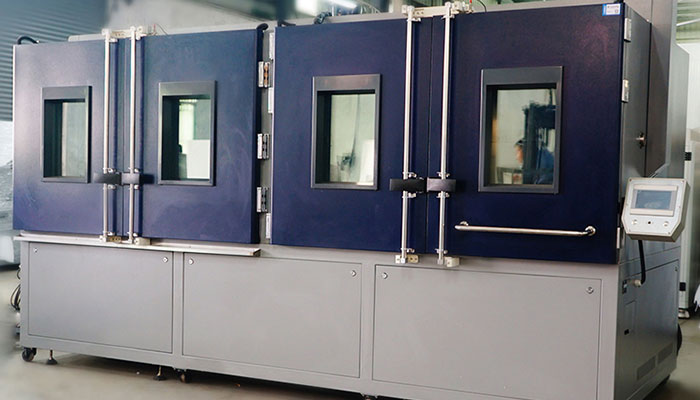

Structure

  • Thermal Shock Test Chamber

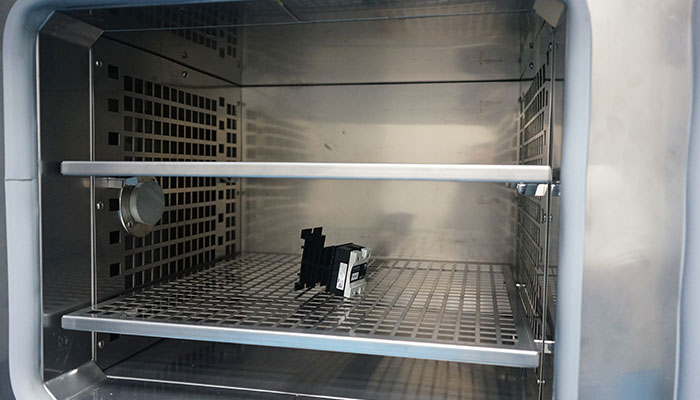

    High temperature chamber

    1, Including three parts: heater, draught fan and air duct valve

    2, Draught fan cyclically stirs hot air through heater

    3, The basket with testing product drive to high temperature range when doing high temperature impact test.

  • Low temperature chamber

    1, Including four parts: evaporator, energy storage piece, draught fan and air duct valve

    2, Draught fan cyclically stirs cold air through evaporator and energy storage piece.

    3, The basket with testing product drive to low temperature range when doing low temperature impact test.

    Thermal Shock Test Chamber
  • Thermal Shock Test Chamber

    Drive device

    Pneumatic cylinder: drive basket with testing product to high and low temperature chamber

    Air compressor: Provide the compressed air for driving pneumatic door (supplied by buyer)

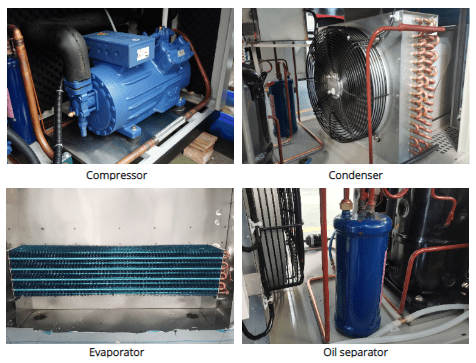

  • Refrigerating device

    Cooling system: complex overlapping efficient cryogenic loop system

    Compressor: Bock compressor

    Refrigerant: environmental protection refrigerant R23/R404A

    Condensation: Stainless steel welded plate heat exchanger

    Thermal Shock Test Chamber
  • Thermal Shock Test Chamber

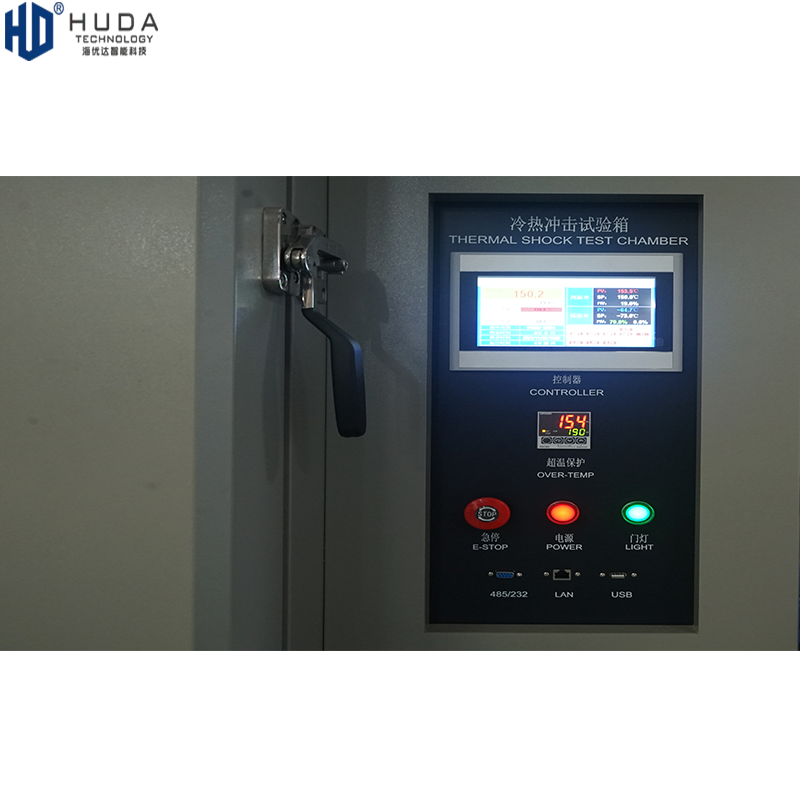

    Controller

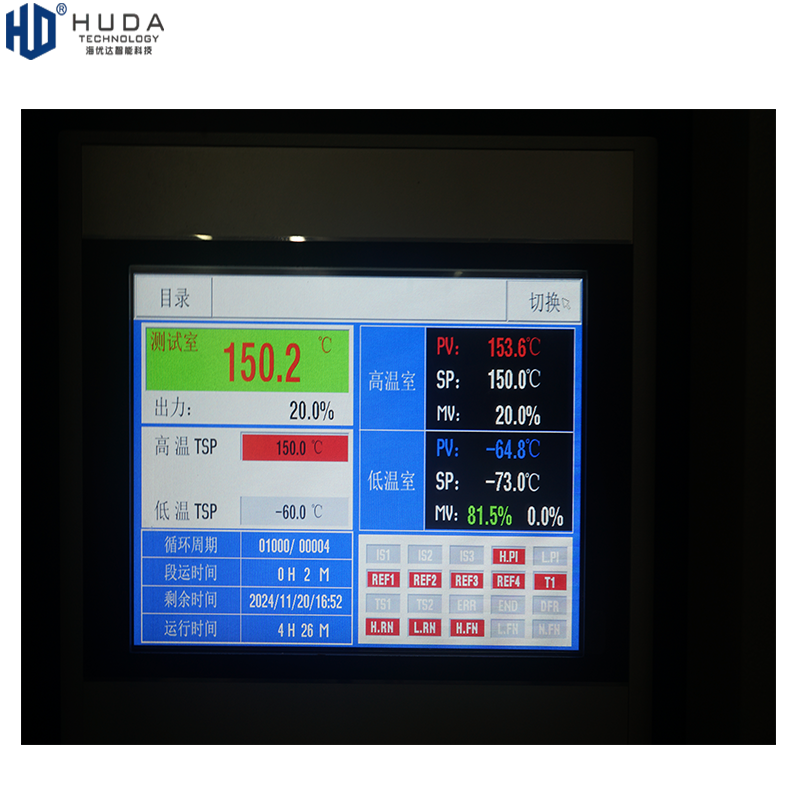

    Operate interface: PLC controller, touch screen

    Program memory capacity: 100 groups

    Setting range: Time: 1 minute ~ 99 hour 59 minute, cycles: 1~ 9999cycles

    Resolution: temperature: 0.01 ℃

    Input: T thermocouple

    Control method: PID auto calculation control

  • Additional functions

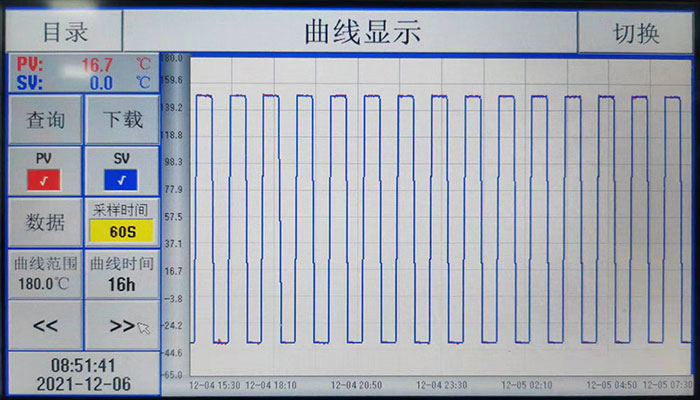

    Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time

    Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.

    Thermal Shock Test Chamber
  • Thermal Shock Test Chamber

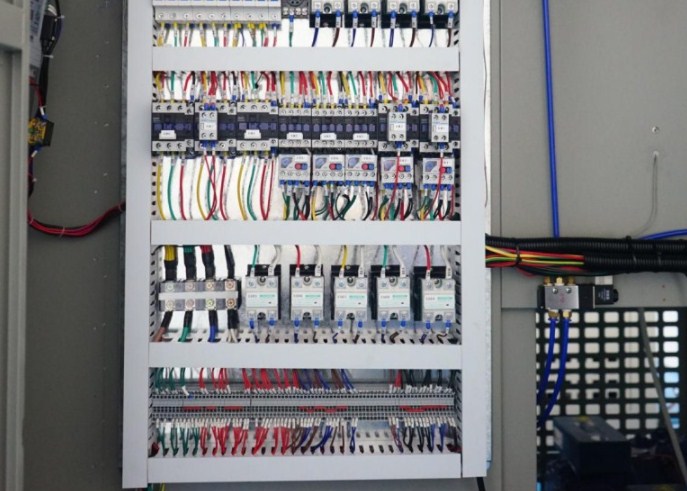

    Safety device

    Power overload protection

    Leakage protection

    Control circuit overload protection

    Short-circuit protection

    Compressor overload protection

    Ground protection

    Over temperature protection
