Specifications
Model | HUD-H202 |
1. The weight of the test piece | 2kg±100g; |
2. Drop height | 400~1500mm (adjustable); |
3. Control method | button control; |
4. Lifting method | automatic lifting; |
5. Falling method | free fall; |
6. Height accuracy | ±1mm; |
7. Height display | LED screen display; |
8. Clamping method | pneumatic clamp; |
9. Material of drop board | steel plate; |
10. Air source | ≥0.4MPa; |
11. Drop surface size | 560x410x10mm (width x depth x height); |
12. Dimensions | 570x650x1730mm (width x depth x height); |
13. Weight | 80kg |
14. Power source: | 1∮, 220V, 3A |
Details
TEST PROCESS

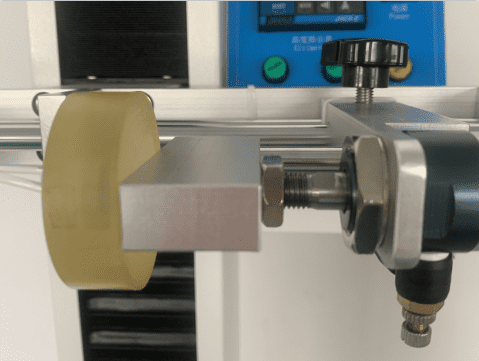

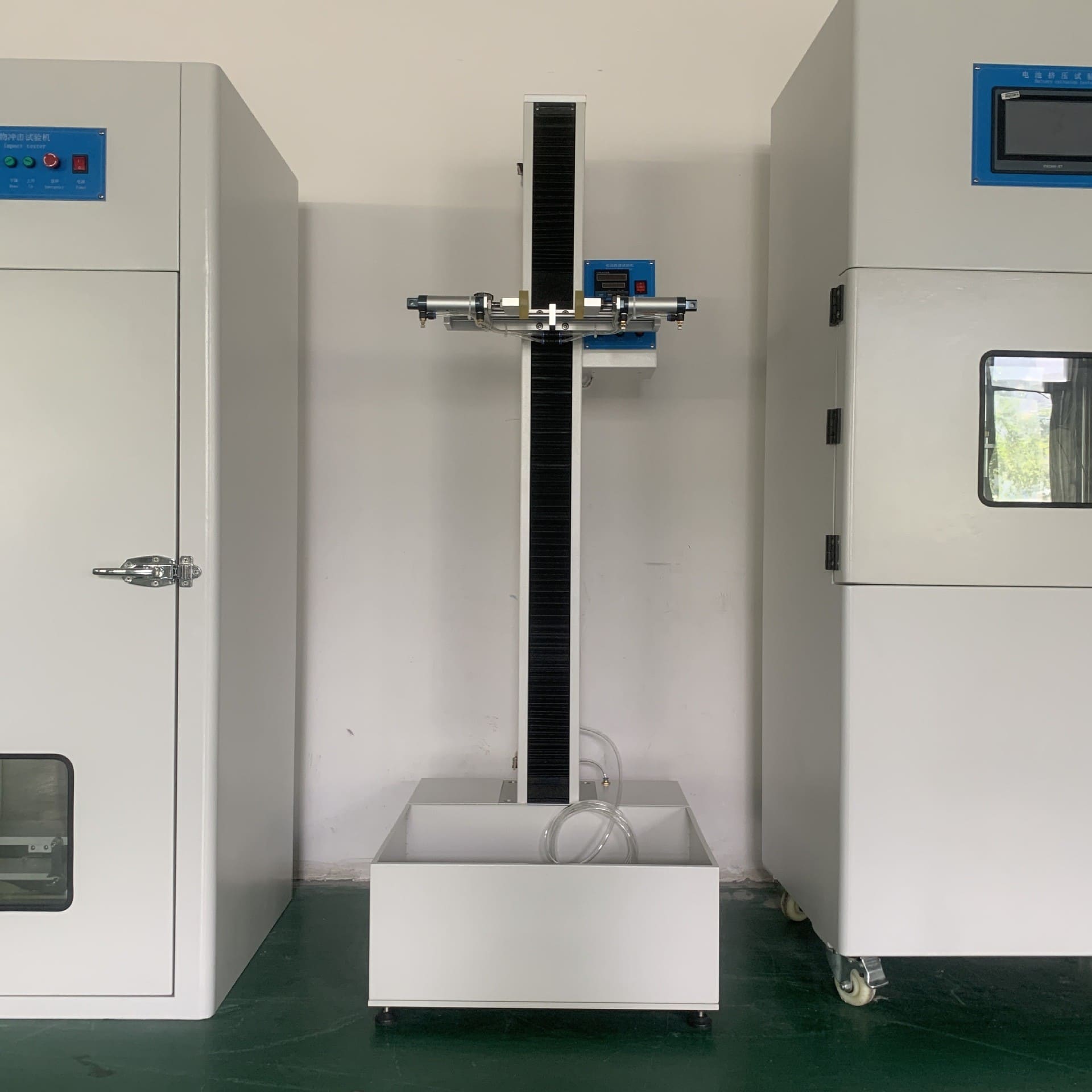

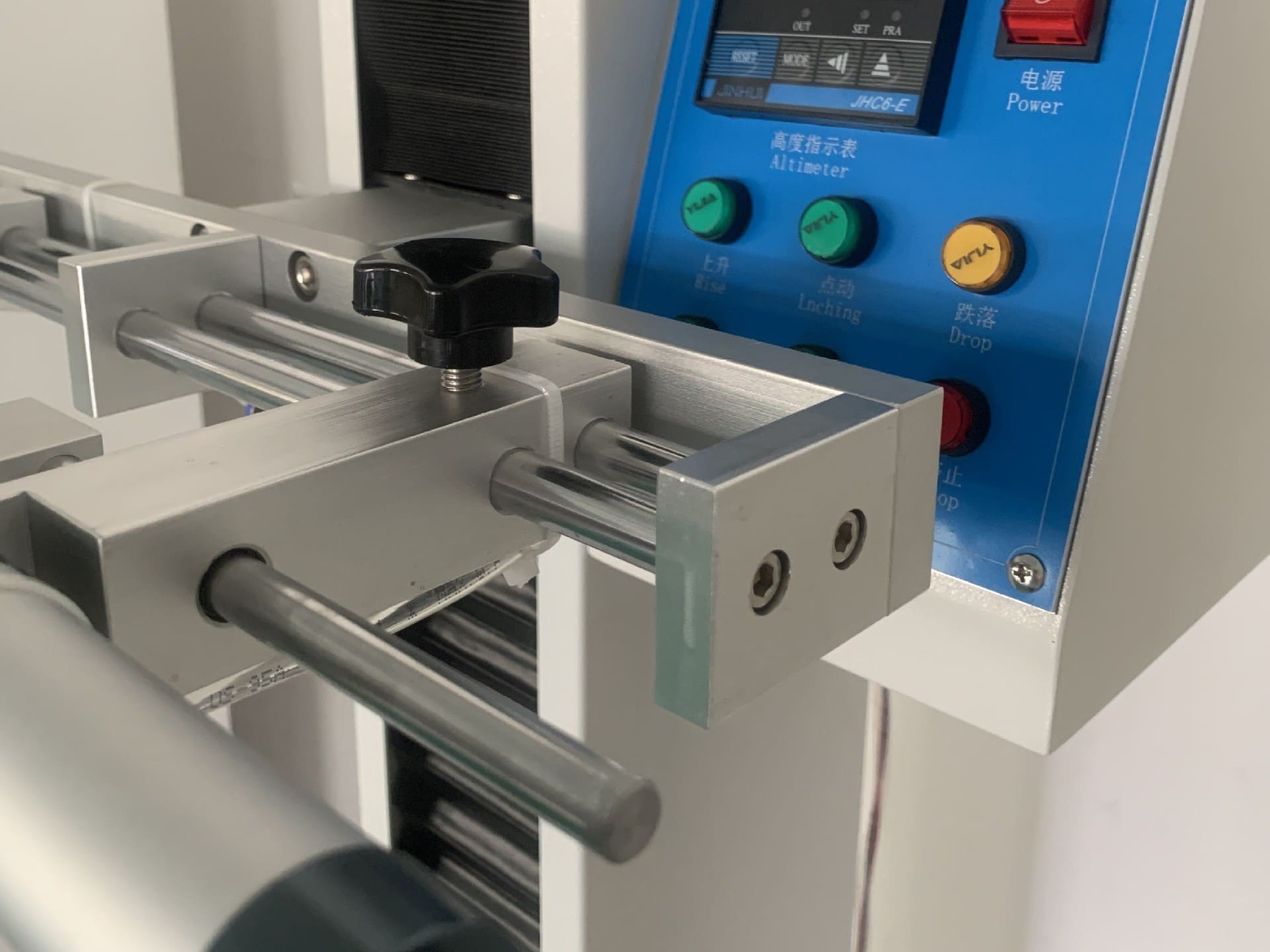

Place battery in a special fixture (adjustable stroke) to clamp firmly, press the drop button, the cylinder is released, the specimen will be tested in a free fall, the height of the drop can be adjusted up and down, the altimeter can know the drop height of the specimen, the key components of this machine Reliable performance, a variety of drop floors are available.
TEST STANDARD
UN38.3 "United Nations Manual of Transport Tests and Standards for Dangerous Goods"
IEC62133 "Battery (group) composed of batteries and safety requirements for portable equipment"
UL 1642:2012 "Lithium Battery Standard"
GB/T 31241-2014 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products"
