Specifications
| Model | HUD-E710-1 |
| Internal dimension (W*D*H) | 1000*1000*1000mm |
External dimension (W*D*H) | 1200*1400*2100mm |
Chamber material | Stainless steel #304, Waterproof Toughened glass observation window |
Sample turntable | Diameter 500mm |
Turntable rotation speed | 1~10r/min, height can be adjusted |
Water drop speed | 1 or 3mm/min, can be adjusted |

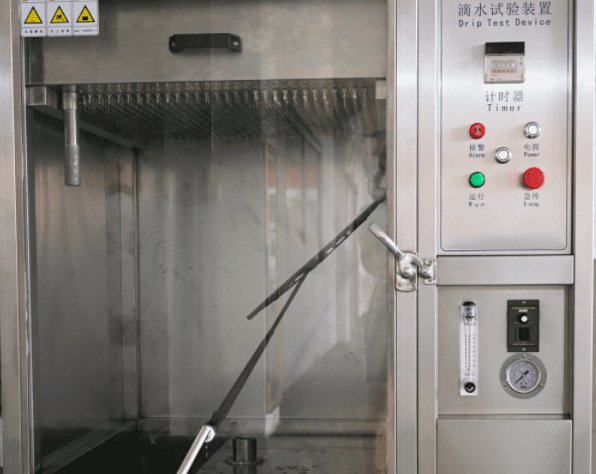

Drip box size | 800*800mm |
Distance from drip box to specimen surface | 200mm |
Water drop hole diameter | 0.4mm |
Distance from water drop hole | 20mm |
Test duration | 1~999h999min, adjustable |
Turntable angle for IPX2 | 15° inclined on either side of the vertical in two mutually perpendicular planes |
Safety protection device | Leakage, short circuit, motor over temperature… |
Power supply source | single-phase, 220V±10%, 50/60Hz (can be appointed) |
Features
DESIGN AS PER IEC 60529
Meet standards: GB/T-4208-2017、DIN-40050-9、IEC-60529、ISO-20653
DETAILS
Built-in lighting in chamber;
Rain time, rain interval time and rain intensity can be adjusted and controlled respectively;
Measure the amount of formaldehyde in the absorption solution and extraction of air volume, and show it by micrograms per cubic meter (mg/m after), calculate the amount of formaldehyde in per cubic meter of air.
High quality SUS#304 stainless steel plate;
Large area visible glass door, easy to observe the condition of the test sample in the test chamber;
Fixed PU movable wheel, easy to move;
With 270 degrees swing pipe and 360 degrees rotary rod sprinkler;
Sample table with adjustable speed & angle.
IP series
| IP SERIES | ||
IPX-1 | Protected against falling water | Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes. Unit is placed in its normal operating position. |
IPX-2 | Protected against falling water | when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions - tilted 15 degrees in each direction from normal operating position. |
IPX-3 | Protected against spraying water | Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min. |
IPX-4 | Protected against splashing water | Same as IPX-3 but water is sprayed at all angles. |
IPX-5 | Protected against water jets | Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters. |
IPX-6 | Protected against heavy seas | Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters. |
IPX-7 | Protected against water immersion | Immersion for 30 minutes at a depth of 1 meter. |
IPX-8 | Protected against water submersion | The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer. |
IPX-9 | Protection against high-pressure water splashes | The water pressure should be 8–10 MPa (80–100 bar) at distance of 0.10–0.15 meters.The water temperature should be 80 °C. |
